Components [10/2014 - ]: Illustration

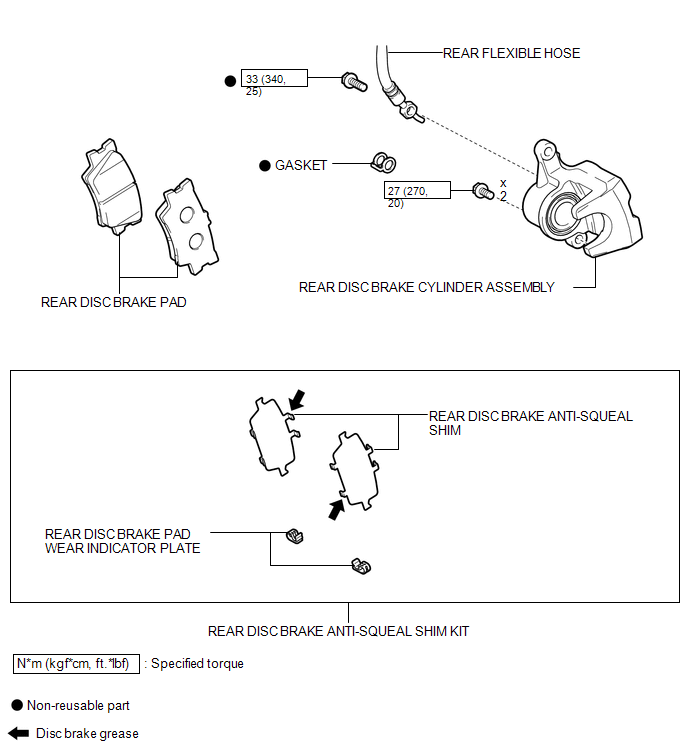

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 of 3)
GTY607852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

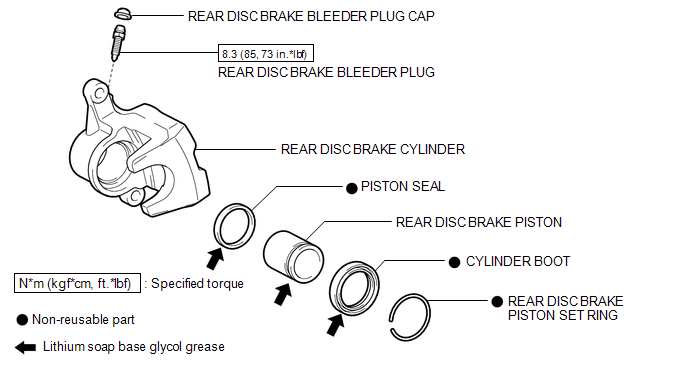

Fig 1: Rear Brake Replacement Components With Torque Specifications (2 of 3)
GTY592830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

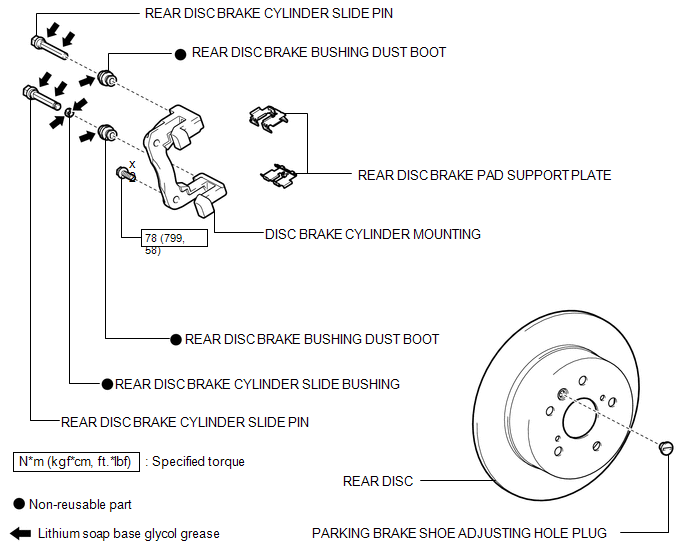

Fig 1: Rear Brake Replacement Components With Torque Specifications (3 of 3)
GTY563141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
