Removal [10/2014 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE REAR FLEXIBLE HOSE
    1. Using a union nut wrench, disconnect the brake line while holding the rear flexible hose with a wrench.

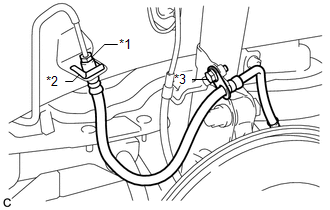

      GTY610383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Brake Line
      *2 Clip
      *3 Bolt
      NOTE:
      • Do not kink or damage the brake line.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
    2. Remove the clip from the rear flexible hose.
    3. Remove the bolt.
    4. Remove the union bolt, gasket and rear flexible hose.
      GTY545487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
