Installation [10/2014 - ]: Procedure

1. Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 33 N*m (340 kgf*cm, 25 ft.*lbf)

   TEXT IN ILLUSTRATION



   *a

   Lock Hole

   NOTE:

   Install the flexible hose lock securely into the lock hole in the rear disc brake cylinder.

2. Install a new clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

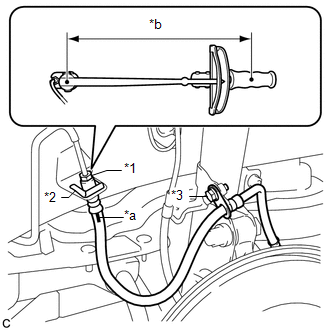

   TEXT IN ILLUSTRATION



   *1	Brake Line
   *2	Clip
   *3	Bolt
   *a	Identification Mark
   *b	Torque Wrench Fulcrum Length

   NOTE:

   • Install the clip as far as it will go.
   • When installing the rear flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
3. Install the rear flexible hose with the bolt.

   Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

4. Using a union nut wrench, connect the brake line to the rear flexible hose while holding the rear flexible hose with a wrench.

   Specified Tightening Torque

   Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

   NOTE:

   • Do not kink or damage the brake line.
   • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length for the torque wrench (Refer to PRECAUTION [10/2014 - ] ).
   • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 250 mm (9.84 in.)):

     14 N*m (142 kgf*cm, 10 ft.*lbf)

(Refer to BLEEDING [10/2014 - ] )

Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
