Removal [10/2014 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT

    (Refer to REMOVAL [10/2014 - 10/2015] or REMOVAL [10/2015 - ] )

  2. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY (w/ Automatic Headlight Beam Level Control System)

    Refer to PROCEDURE - Step 1

  3. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

    Refer to PROCEDURE - Step 2

  5. REMOVE PUSH ROD PIN
    1. Remove the clip and push rod pin.
      GTY315744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the brake master cylinder push rod clevis from the brake pedal support assembly.
  6. REMOVE BRAKE PEDAL RETURN SPRING
    1. Remove the brake pedal return spring from the brake pedal support assembly.
      GTY559550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

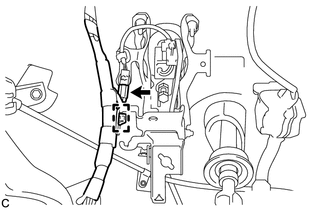

    1. Disconnect the brake pedal load sensing switch connector and disengage the clamp.
      GTY322271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

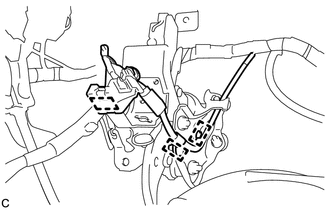

    2. Disengage the 3 clamps and separate the wire harness from the brake pedal support assembly.
      GTY316531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

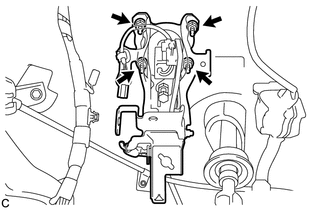

    3. Remove the 4 nuts and brake pedal support assembly.
      GTY316533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
