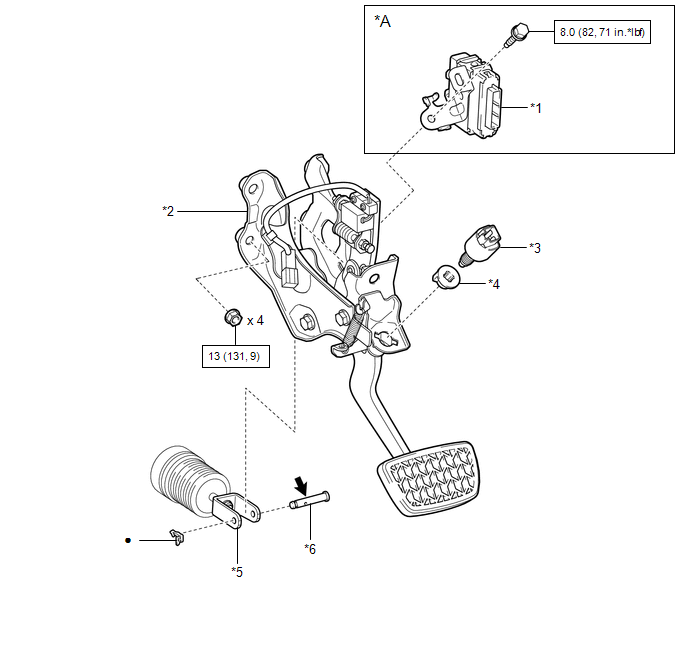

Components [10/2015 - ]: Illustration
| Callout | Description | Callout | Description |
| *A | w/ Automatic Headlight Beam Level Control System | - | - |
| *1 | HEADLIGHT LEVELING ECU ASSEMBLY | *2 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *5 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *6 | PUSH ROD PIN |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
