Components [10/2014 - 10/2015]: Illustration

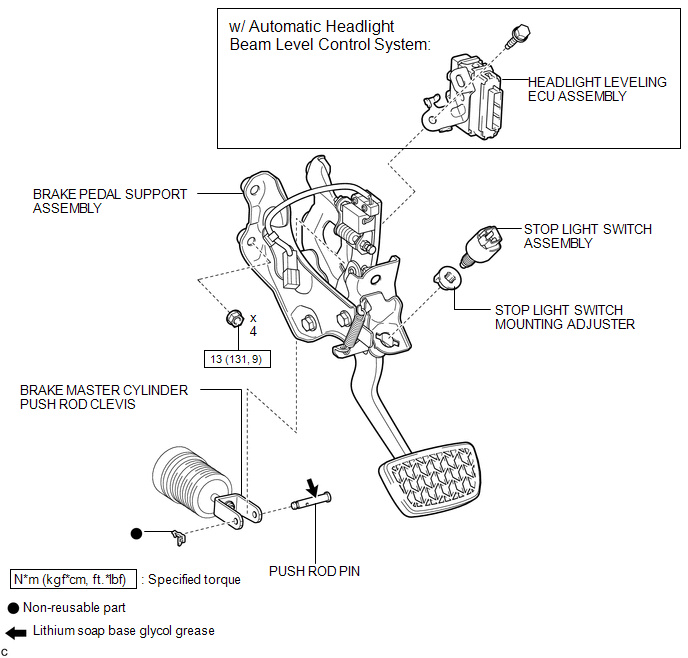

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 2)
GTY593370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

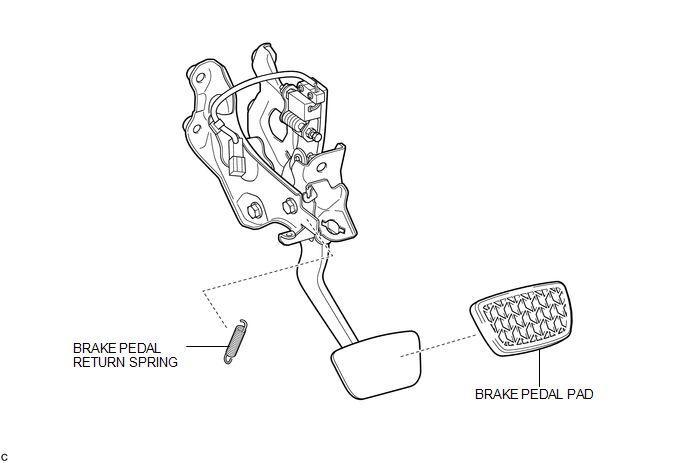

GTY568224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
