Components [10/2014 - ]: Illustration

Fig 1: Front Outer Cowl Top Panel Sub-Assembly Replacement Components With Torque Specifications
GTY590141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

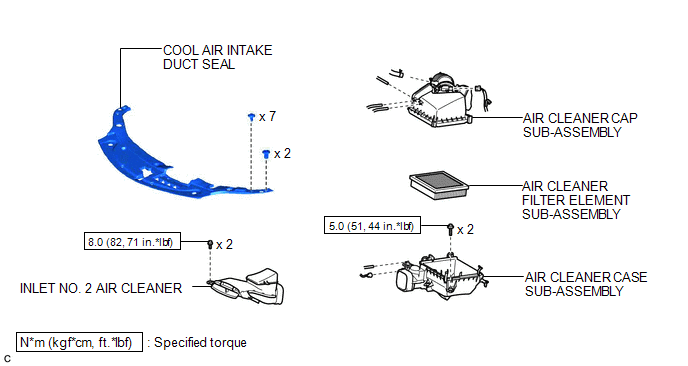

Fig 1: Air Cleaner Replacement Components With Torque Specifications
GTY588892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

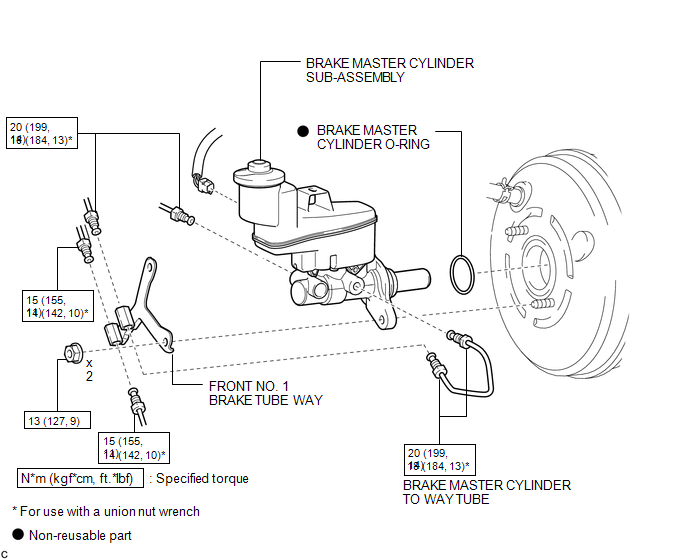

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
GTY598249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

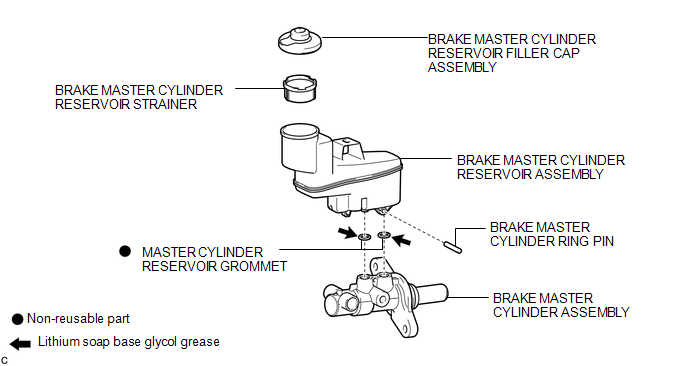

GTY572890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
