On-Vehicle Inspection [10/2014 - ]: Procedure

INSPECT BRAKE FLUID LEVEL IN RESERVOIR

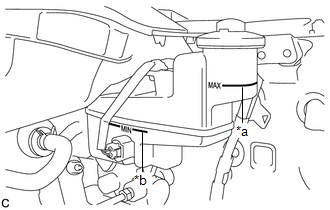

Check the fluid level.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	MAX Line
*b	MIN Line

If brake fluid level is lower than the MIN line, check for leaks and inspect the disc brake pads. If necessary, refill the reservoir with brake fluid to the MAX line after repair or replacement.

Brake Fluid

SAE J1703 or FMVSS No. 116 DOT 3

NOTE:

If using a dropper to adjust the fluid amount, make sure that the dropper has not been used with mineral oils, water or deteriorated brake fluid. Sealed areas may deteriorate and lead to fluid leaks, or the fluid may deteriorate and lead to decreased efficiency.
