Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

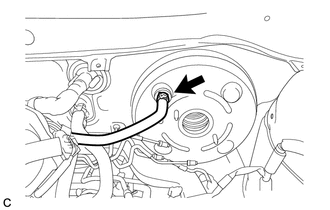

1. Slide the clip and disconnect the union to check valve hose from the brake booster assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  5

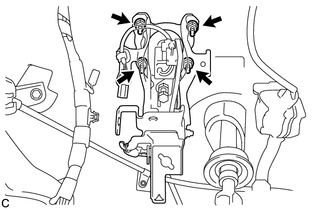

1. Remove the 4 nuts and brake booster assembly from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not kink or damage the brake lines.

1. Remove the brake booster gasket from the brake booster assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Loosen the lock nut and remove the brake master cylinder push rod clevis and lock nut from the brake booster assembly.

1. Remove the brake vacuum check valve assembly from the brake booster assembly.

1. Remove the check valve grommet from the brake booster assembly.
