Components [10/2014 - ]: Illustration

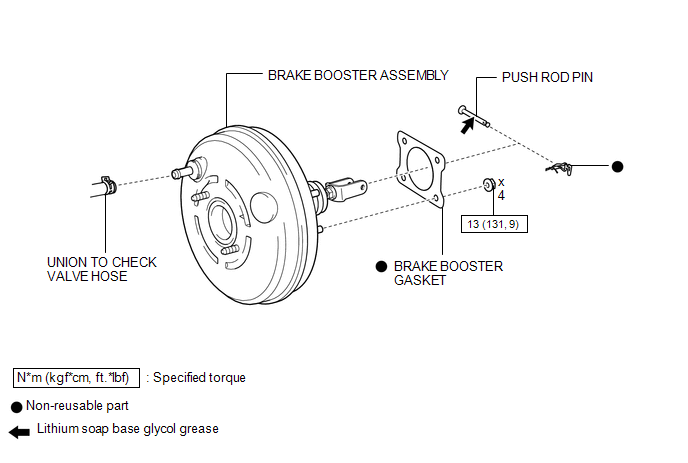

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 2)
GTY540702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

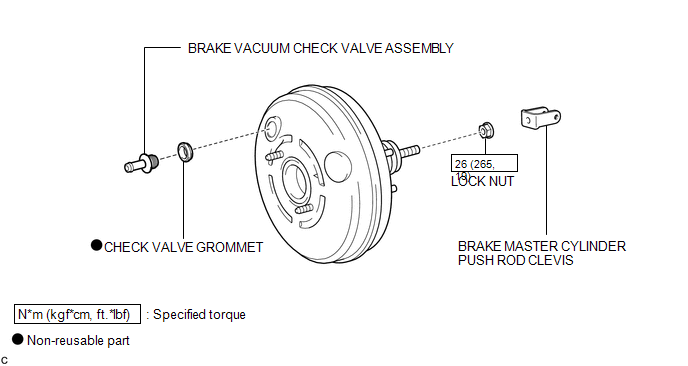

Fig 1: Brake Booster Replacement Components With Torque Specifications (2 Of 2)
GTY582018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
