Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    (Refer to DISASSEMBLY [10/2014 - ] )

  2. REMOVE SEAT MEMORY SWITCH

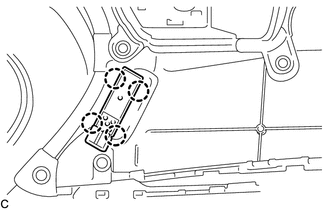

    1. Disengage the 4 claws to remove the seat memory switch from the front door trim board sub-assembly LH.
      GTY379582Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
