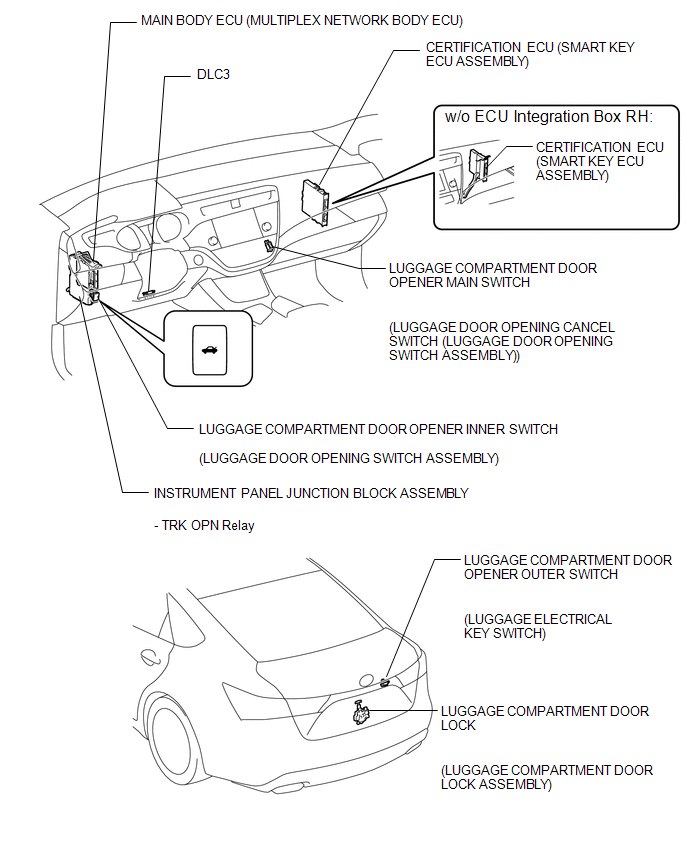

Parts Location [10/2014 - ]: Illustration

GTY554024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
