Components [10/2014 - ]: Illustration

GTY372069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Door Replacement Components With Torque Specifications (1 Of 2)
GTY565305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

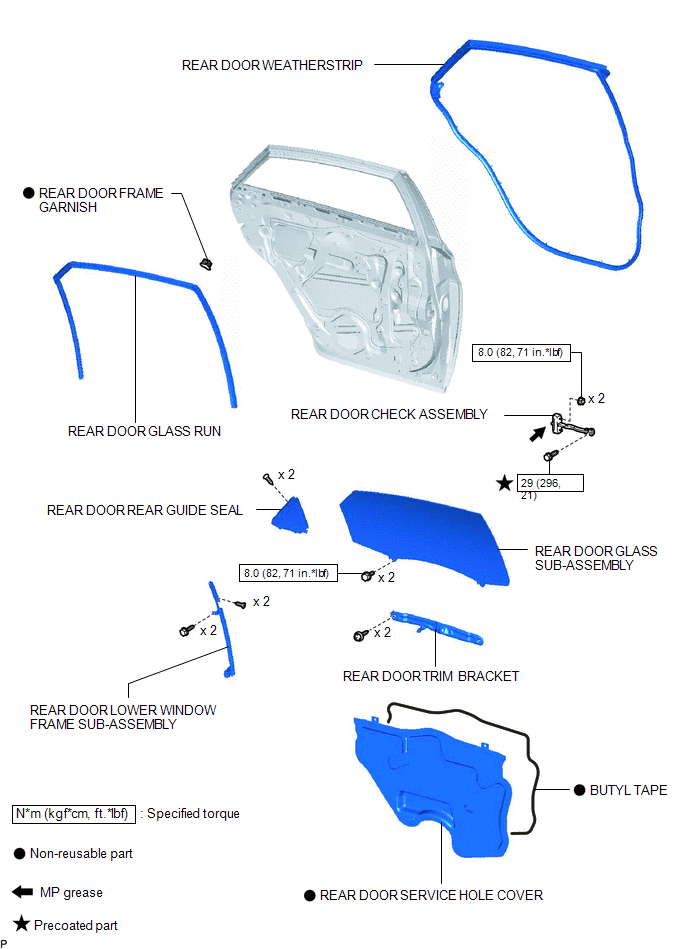

Fig 1: Rear Door Replacement Components With Torque Specifications (2 Of 2)

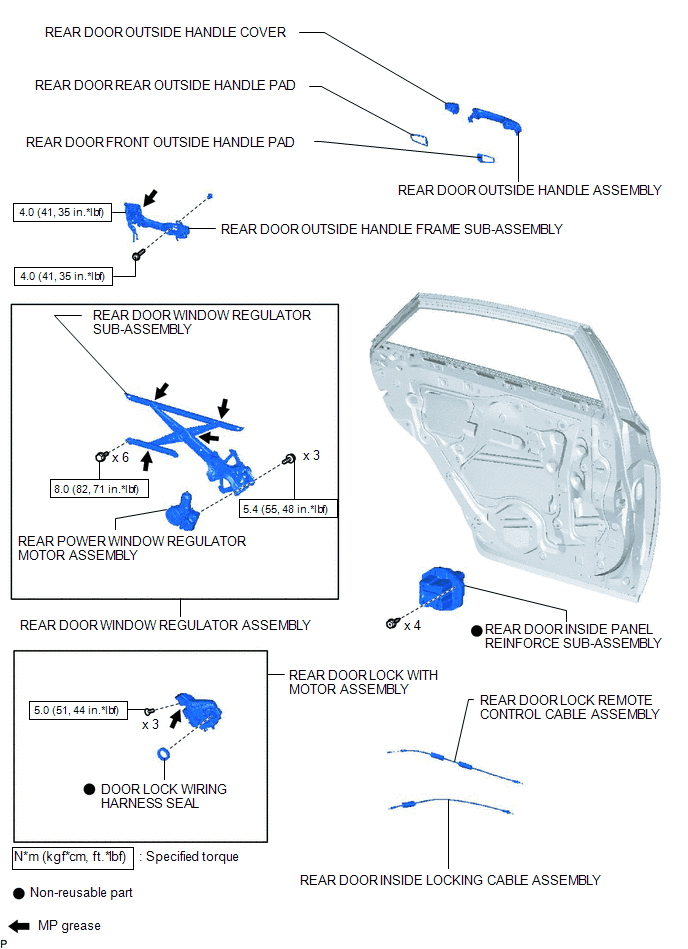

GTY572139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

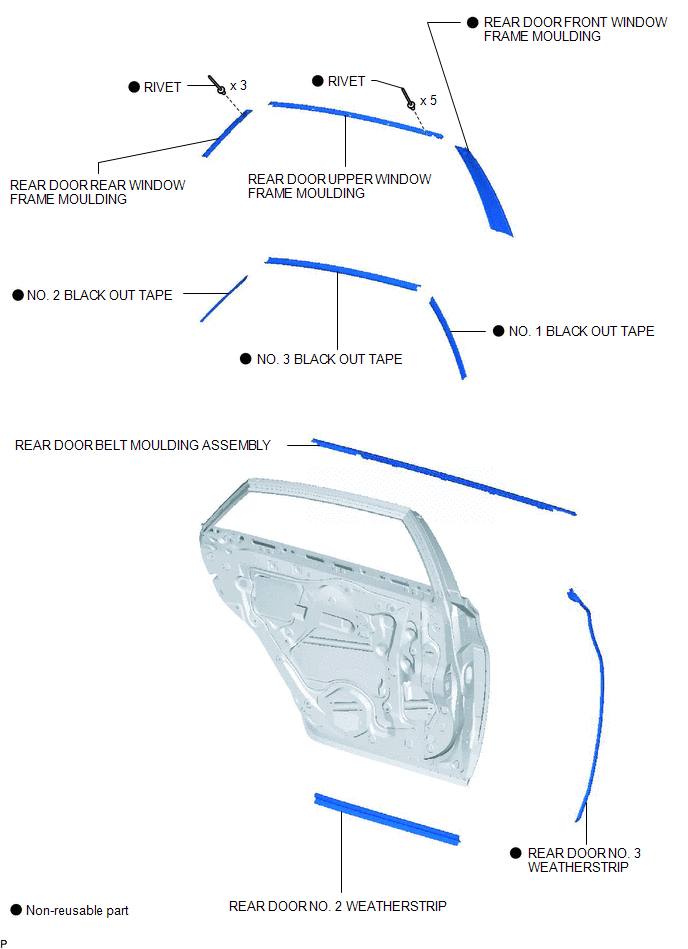

GTY571043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
