Adjustment [10/2014 - ]: Procedure

INSPECT REAR DOOR

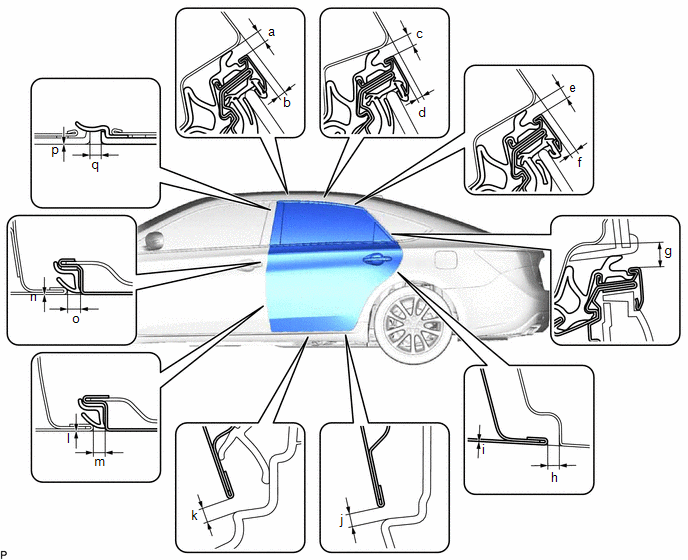

Check that the clearance measurements of areas a through q are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A	3.35 to 6.35 mm (0.132 to 0.25 in.)	B	0.9 to 3.9 mm (0.0354 to 0.154 in.)
c	3.35 to 6.35 mm (0.132 to 0.25 in.)	d	0.2 to 3.2 mm (0.00787 to 0.126 in.)
E	3.35 to 6.35 mm (0.132 to 0.25 in.)	F	0.9 to 3.9 mm (0.0354 to 0.154 in.)
G	8.6 to 11.6 mm (0.339 to 0.457 in.)	H	3.9 mm (0.154 in.)
i	0 mm	J	5.45 mm (0.215 in.)
K	4.85 mm (0.191 in.)	l	0 mm
m	4.0 mm (0.157 in.)	N	0 mm
O	4.0 mm (0.157 in.)	P	-2.0 to 2.0 mm (-0.0787 to 0.0787in.)
Q	2.3 to 6.3 mm (0.0906 to 0.248 in.)	-	-

ADJUST REAR DOOR

NOTE:

Make sure to turn the engine switch off when adjusting door lock strikers.

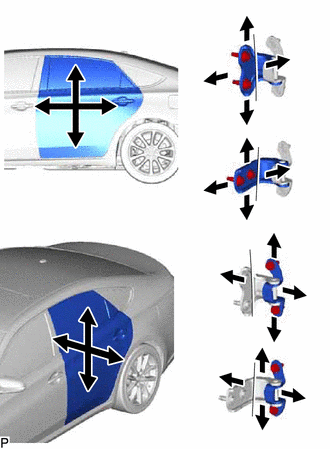

Using SST, loosen the hinge bolts on the vehicle body and adjust the door position.

Tighten the hinge bolts on the vehicle body after the adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the hinge bolts on the door and adjust the door position.
Tighten the hinge bolts on the door after the adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
