Removal [10/2014 - ]: Procedure

  1. REMOVE BAGGAGE HOLDER NET (w/ Partition Net)
    1. Remove the baggage holder net.
  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
    1. Remove the luggage compartment floor mat.
  3. REMOVE SPARE WHEEL COVER PAD LH (for Full Size Spare Tire)
    1. Remove the spare wheel cover pad LH.
  4. REMOVE SPARE WHEEL COVER PAD RH (for Full Size Spare Tire)
    1. Remove the spare wheel cover pad RH.
  5. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

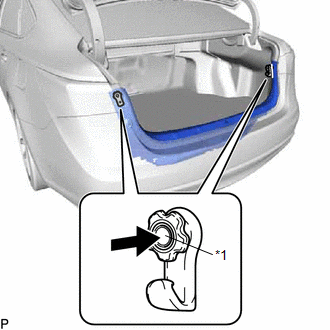

    1. Push the 2 pins and remove the 2 No. 1 luggage compartment trim hooks.
      GTY383795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pin
  6. REMOVE REAR FLOOR FINISH PLATE

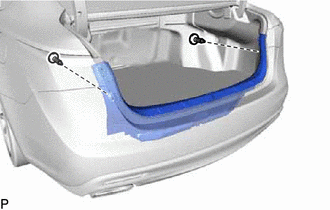

    1. Using a clip remover, remove the 2 clips.
      GTY361217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

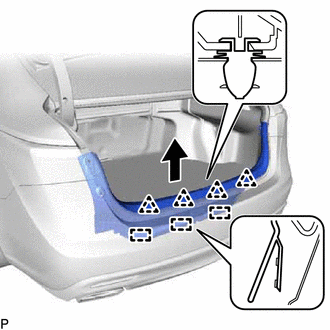

    2. Disengage the 4 clips and 3 guides and remove the rear floor finish plate as shown in the illustration.
      GTY361222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH

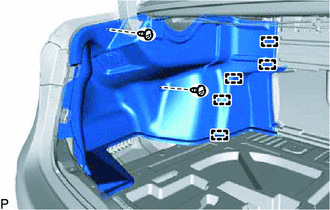

    1. Using a clip remover, remove the 2 clips.
      GTY363394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 fasteners to remove the luggage compartment inner trim cover LH.
  8. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH

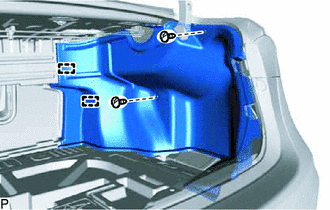

    1. Using a clip remover, remove the 2 clips.
      GTY363384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 fasteners to remove the luggage compartment inner trim cover RH.
  9. REMOVE LUGGAGE COMPARTMENT REAR TRIM COVER

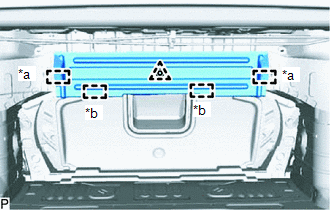

    1. Remove the clip.
      GTY570638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Fastener
      *b Guide
    2. Disengage the 2 fasteners and 2 guides to remove the luggage compartment rear trim cover.
  10. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    See step  1

  11. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY

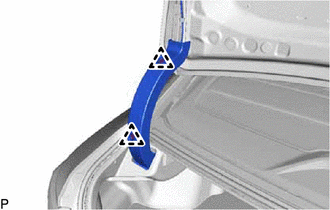

    1. Remove the 2 clips and No. 2 wiring harness protector.
      GTY577202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

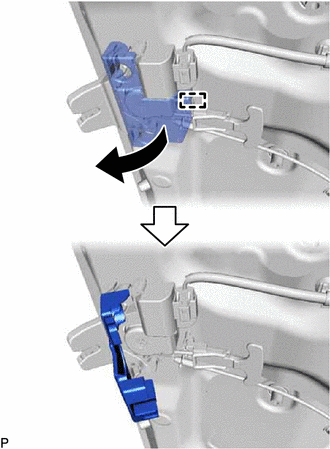

    2. Disengage the guide as shown in the illustration.
      GTY363468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

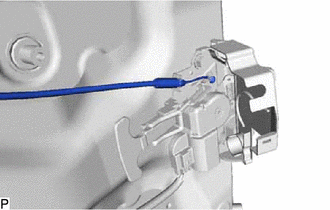

    3. Disconnect the luggage door lock control cable sub-assembly.
      GTY363476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

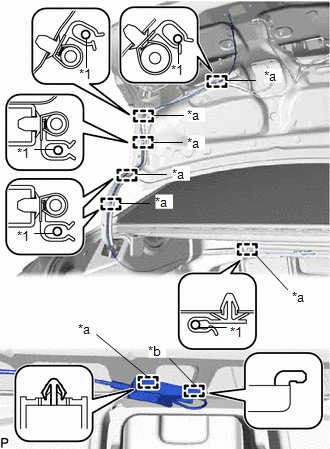

    4. Disengage the 7 clamps and guide to remove the luggage door lock control cable sub-assembly.
      GTY598217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Luggage Door Lock Control Cable Sub-assembly
      *a Clamp
      *b Guide
