Adjustment [10/2014 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    See step  1

  2. REMOVE BAGGAGE HOLDER NET (w/ Partition Net)

    See step  1

  3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    See step  2

  4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    See step  5

  5. REMOVE REAR FLOOR FINISH PLATE

    See step  6

  6. ADJUST LUGGAGE COMPARTMENT DOOR
    1. Remove the 2 clips and No. 2 wiring harness protector.
      GTY577202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

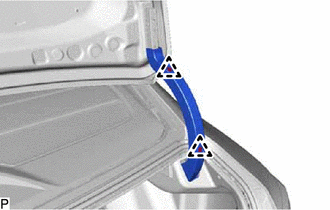

    2. Remove the 2 clips and wiring harness protector.
      GTY363492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

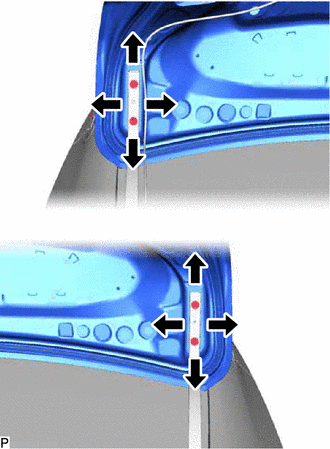

    3. Loosen the door side hinge bolts to adjust the door horizontally and vertically.
      GTY361211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

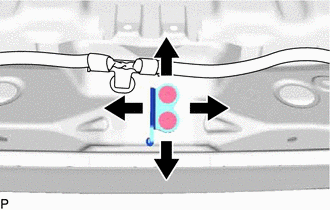

    4. Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.
      GTY361220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a brass bar and a hammer, hit the striker to adjust its position.
    6. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

    7. Install the wiring harness protector with the 2 clips.
    8. Install the No. 2 wiring harness protector with the 2 clips.
  7. INSTALL REAR FLOOR FINISH PLATE

    See step  6

  8. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    See step  7

  9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

    See step  10

  10. INSTALL BAGGAGE HOLDER NET (w/ Partition Net)

    See step  11

  11. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    See step  12

  12. INSPECT LUGGAGE COMPARTMENT DOOR

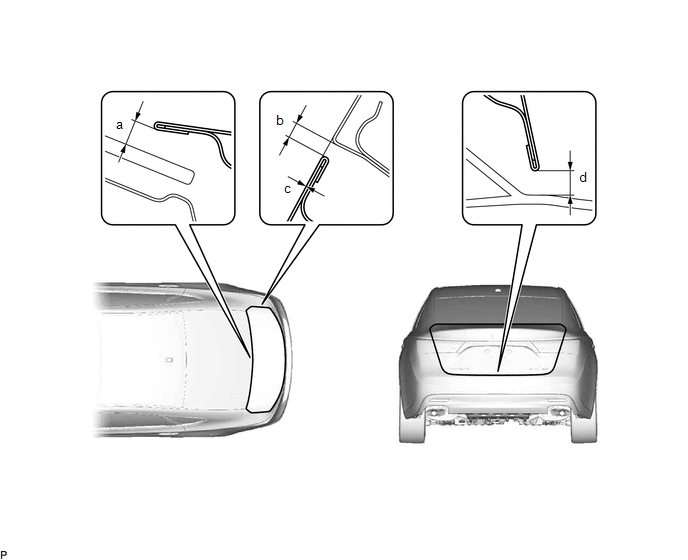

    1. Check that the clearance measurements of areas a through d are within each standard range.
      GTY372904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      A 6.05 mm (0.238 in.) B 2.0 to 5.0 mm (0.0787 to 0.197 in.)
      c -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) d 3.85 to 7.85 mm (0.152 to 0.309 in.)
