Removal [10/2014 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    See step  1

  2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

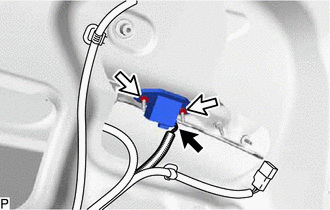

    1. Disconnect the connector.
      GTY361210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and luggage electrical key switch.
