On-Vehicle Inspection [10/2014 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

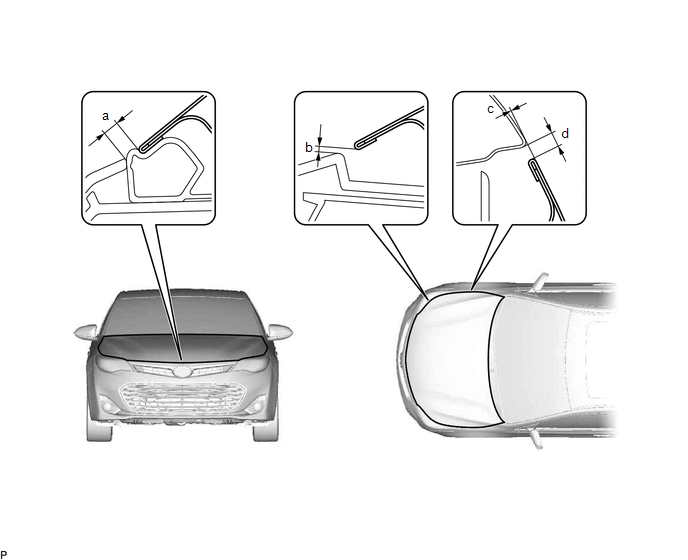

    1. Check that the clearance measurements of areas a through d are within each standard range.
      GTY569646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      A 1.85 to 5.85 mm (0.0728 to 0.23 in.) B 1.15 mm (0.0453 in.)
      c -1.4 to 1.6 mm (-0.0551 to 0.063 in.) d 2.0 to 5.0 mm (0.0787 to 0.197 in.)
