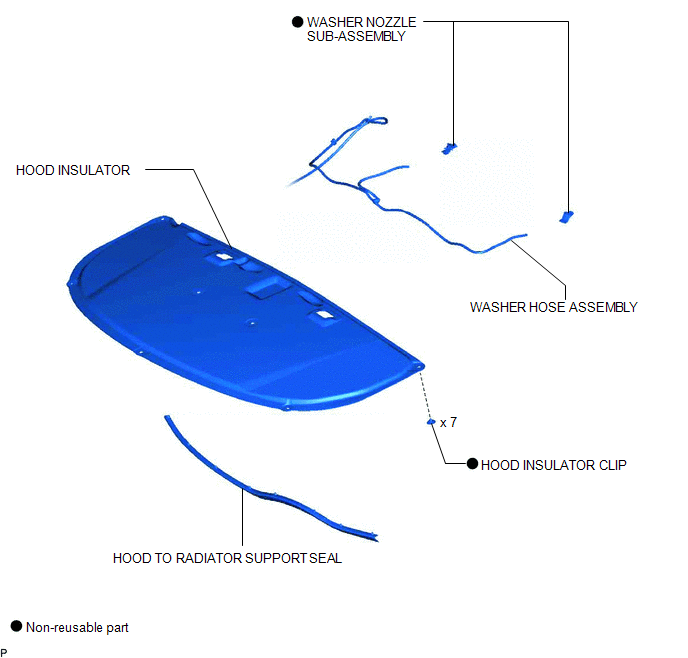

Home >> Toyota >> 2017 >> Avalon XLE Plus >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Service Information) (Except Hybrid) >> Hood >> Components [10/2014 - ] >> Illustration
