Removal [10/2014 - ]: Procedure

REMOVE HOOD SUPPORT ASSEMBLY

NOTE:

Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.
In order to prevent the piston rod from deforming, do not apply any horizontal load to the hood support assembly.

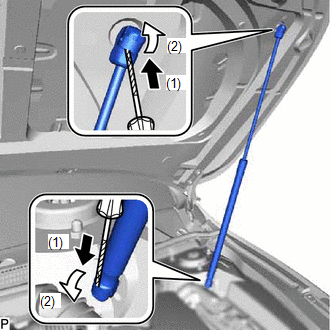

Using a screwdriver, remove the 2 stop rings as indicated by the arrows in the order shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Protective Tape

HINT:

Tape the screwdriver tip before use.

Release the ball joint and remove the hood support assembly.
NOTE:
Remove the hood support assembly while supporting the hood by hand.
