Removal [10/2014 - ]: Procedure

  1. REMOVE BAGGAGE HOLDER NET (w/ Partition Net)

    See step  1

  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    See step  2

  3. REMOVE SPARE WHEEL COVER PAD LH (for Full Size Spare Tire)

    See step  3

  4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    See step  5

  5. REMOVE REAR FLOOR FINISH PLATE

    See step  6

  6. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH

    See step  7

  7. REMOVE FUEL LID LOCK CONTROL OPENER ASSEMBLY

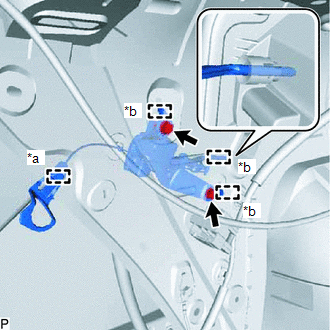

    1. Remove the 2 bolts.
      GTY585495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Clamp
      *b Guide
    2. Disengage the clamp and 3 guides to disconnect the fuel lid lock control opener assembly.
    3. Disconnect the connector to remove the fuel lid lock control opener assembly.
