Home >> Toyota >> 2017 >> Avalon XLE Plus >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Service Information) (Except Hybrid) >> Front Door >> Components [10/2014 - ] >> Illustration

Components [10/2014 - ]: Illustration

GTY377932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Door Replacement Components With Torque Specifications (1 Of 3)

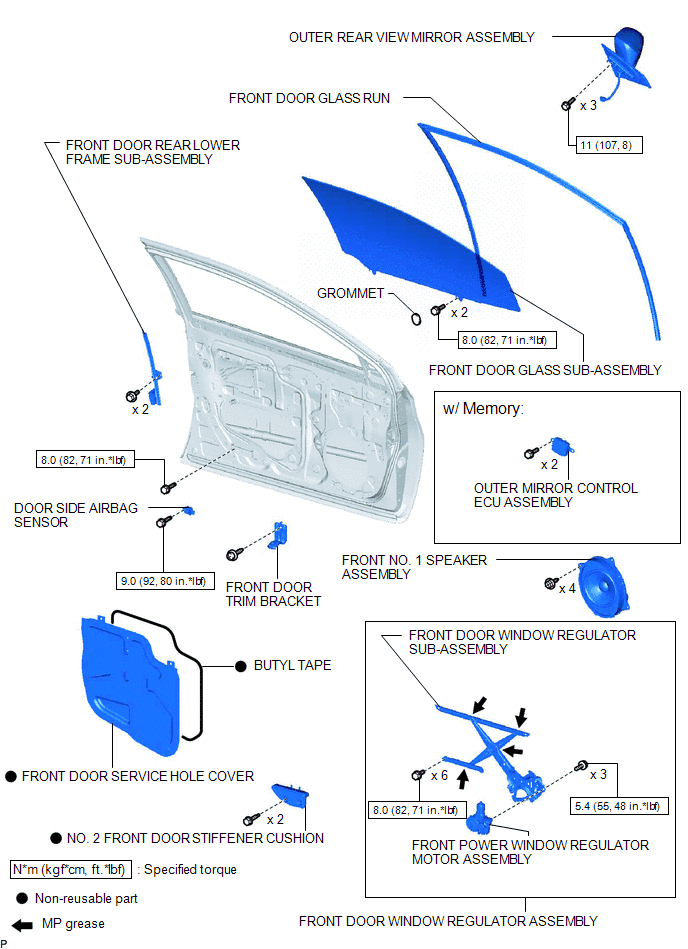

GTY550856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Door Replacement Components With Torque Specifications (2 Of 3)

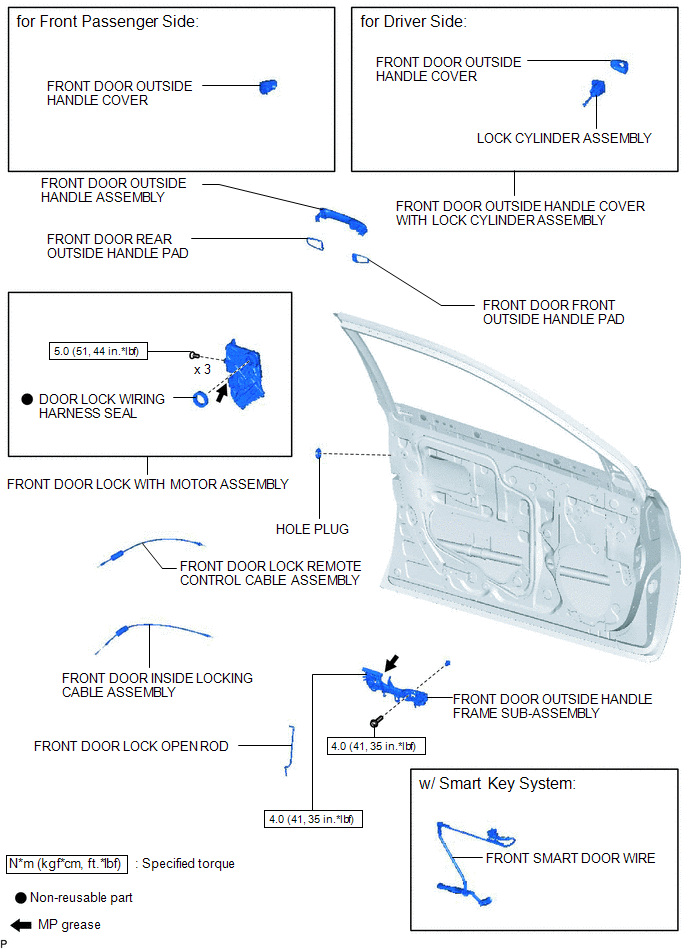

GTY561705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Door Replacement Components With Torque Specifications (3 Of 3)

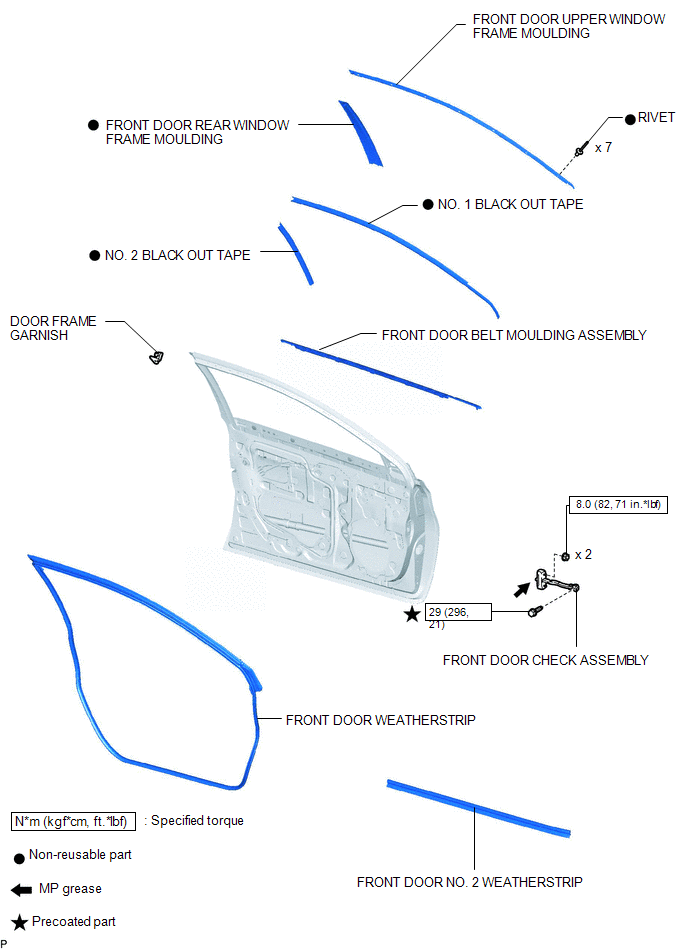

GTY559062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
