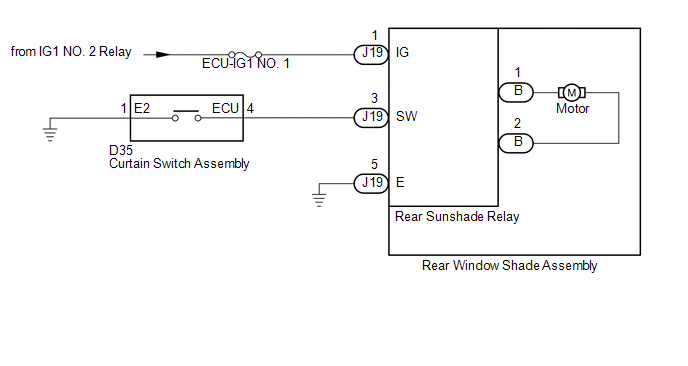

Rear Sunshade does not Operate with Rear Sunshade Switch [10/2014 - ]: Wiring Diagram

GTY381604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
