Parts Location [10/2014 - ]: Illustration

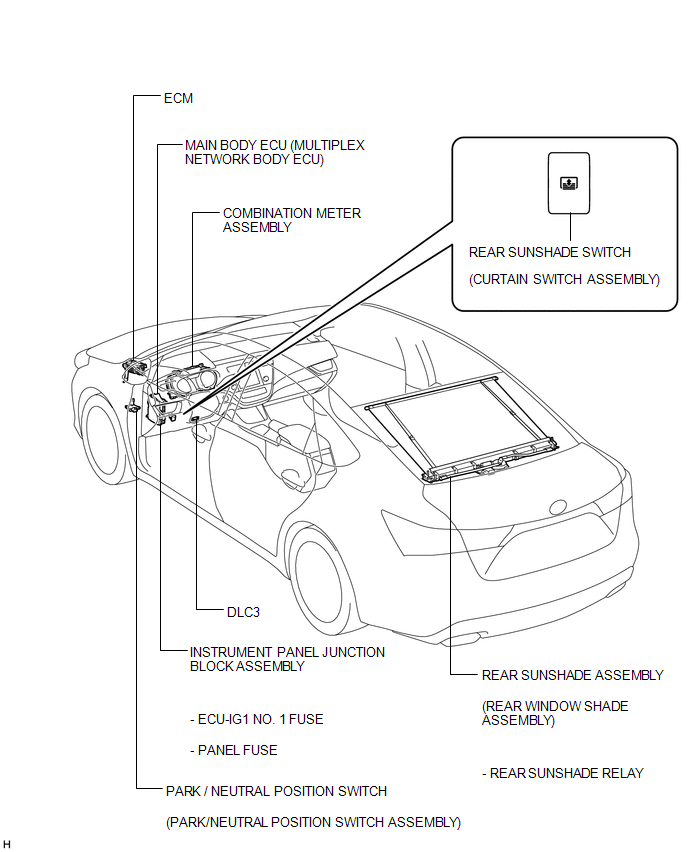

Fig 1: Identifying Rear Sunshade System Components Location

GTY367586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
