Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE AUDIO AMPLIFIER COVER
    1. Using a clip remover, remove the 3 clips.
      GTY378673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (for 9 Speakers)
    1. Disconnect the 2 connectors.
      GTY384030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
      GTY384029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides and remove the stereo component amplifier assembly with bracket.
  4. REMOVE NO. 1 AMPLIFIER BRACKET (for 9 Speakers)
    1. Remove the 2 screws and No. 1 amplifier bracket.
      GTY378676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 AMPLIFIER BRACKET (for 9 Speakers)
    1. Remove the 2 screws and No. 2 amplifier bracket.
      GTY378677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (for 9 Speakers)
  7. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (for 11 Speakers)

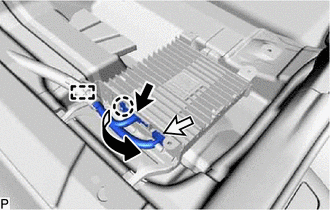

    1. Disengage the claw and disconnect the connector as shown in the illustration.
      GTY378674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and disengage the clamp.
    3. Remove the bolt.
      GTY378675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides and remove the stereo component amplifier assembly with bracket.
  8. REMOVE NO. 1 AMPLIFIER BRACKET (for 11 Speakers)

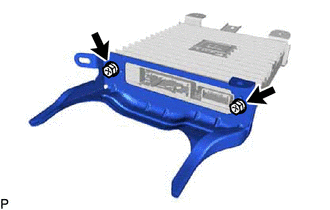

    1. Remove the 2 screws and No. 1 amplifier bracket.
      GTY378678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 AMPLIFIER BRACKET (for 11 Speakers)
    1. Remove the 2 screws and No. 2 amplifier bracket.
      GTY378679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (for 11 Speakers)
