Removal [10/2014 - ]: Procedure

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4

  3. REMOVE NO. 1 REAR DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 5

  4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 8

  6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY WITH BRACKET

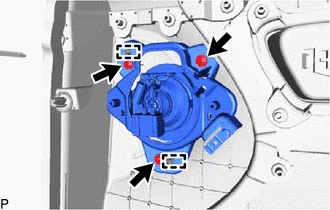

    1. Remove the 3 screws.
      GTY378689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the speaker cone.

    2. Disengage the 2 guides and remove the rear No. 2 speaker assembly with bracket.
  7. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

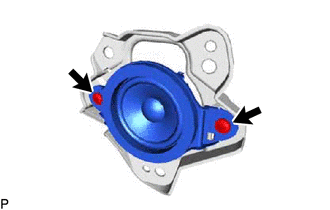

    1. Remove the 2 screws and rear No. 2 speaker assembly from the speaker bracket.
      GTY378690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the speaker cone.
