Parts Location [10/2015 - ]: Illustration

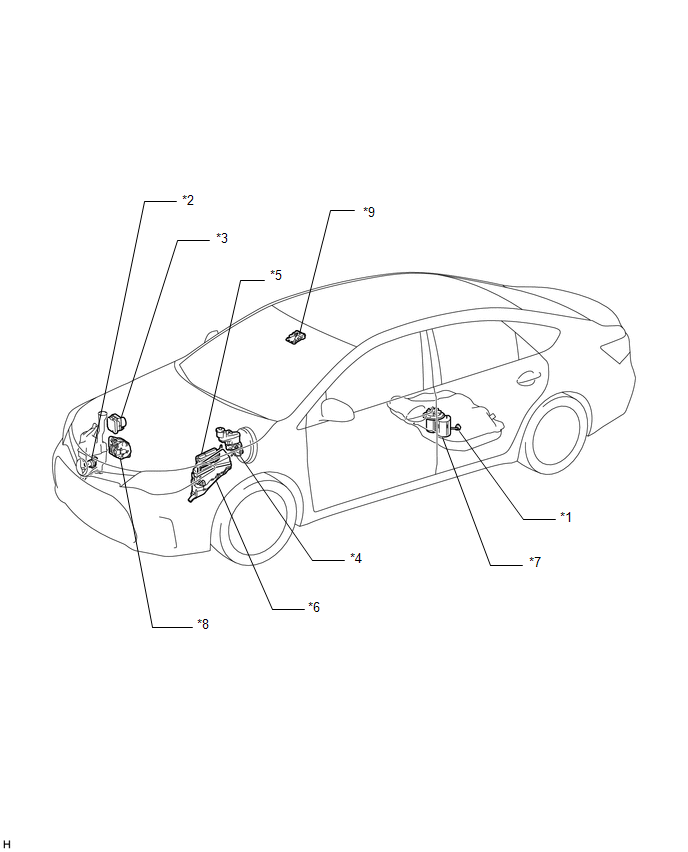

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | BRAKE ACTUATOR - SKID CONTROL ECU |
*4 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *5 | ECM | *6 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE - TURN&HAZ FUSE - METER-IG2 FUSE |
| *7 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *8 | GENERATOR |
| *9 | FORWARD RECOGNITION CAMERA (w/ Pre-collision System) | - | - |

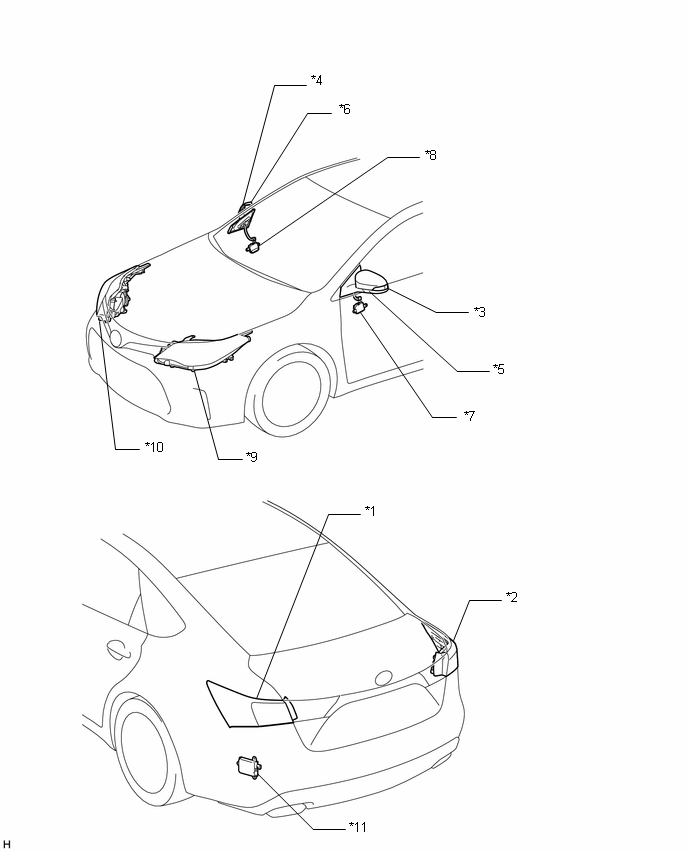

| *1 | REAR COMBINATION LIGHT ASSEMBLY (REAR COMBINATION LIGHT ASSEMBLY LH) | *2 | REAR COMBINATION LIGHT ASSEMBLY (REAR COMBINATION LIGHT ASSEMBLY RH) |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY (SIDE TURN SIGNAL LIGHT ASSEMBLY LH) | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY (SIDE TURN SIGNAL LIGHT ASSEMBLY RH) |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *9 | HEADLIGHT ASSEMBLY LH | *10 | HEADLIGHT ASSEMBLY RH |
| *11 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) | - | - |
