Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER
    1. Disengage the 2 claws and 2 guides to remove the No. 2 forward recognition cover as shown in the illustration.
      GTY560694Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:

      If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER
    1. Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.
      GTY602428Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:

      To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

  3. REMOVE FORWARD RECOGNITION LATCH
    1. Disengage the 2 claws and 4 guides to remove the forward recognition latch as shown in the illustration.
      GTY560687Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  4. REMOVE FORWARD RECOGNITION CAMERA

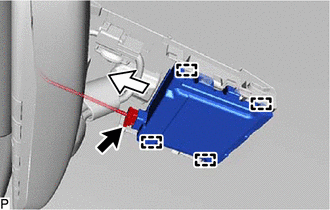

    1. Disconnect the connector.
      GTY560683Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the forward recognition camera has been struck or dropped, replace it with a new one.
      • Do not apply excessive force.
