- REMOVE NO. 1 HEATER TO REGISTER DUCT
- Remove the 4 screws and No. 1 heater to register duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 2 HEATER TO REGISTER DUCT
- Remove the 4 screws and No. 2 heater to register duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the 2 claws to remove the No. 1 side defroster nozzle duct.
- REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the 2 claws to remove the No. 2 side defroster nozzle duct.
- REMOVE NO. 3 HEATER TO REGISTER DUCT
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the claw to remove the No. 3 heater to register duct.
- REMOVE DEFROSTER NOZZLE ASSEMBLY
- Remove the 3 screws and defroster nozzle assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE ACCESSORY METER ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE TELLTALE LIGHT ASSEMBLY (SECURITY INDICATOR LIGHT ASSEMBLY)
Refer to PROCEDURE - Step 2

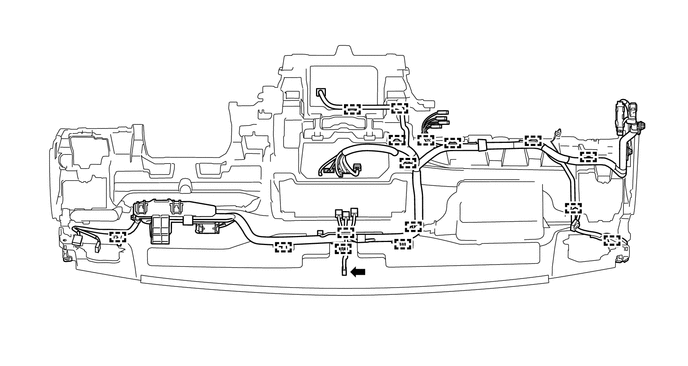

- REMOVE NO. 2 INSTRUMENT PANEL WIRE
- Disconnect the connector.
- Detach the 16 clamps to remove the No. 2 instrument panel wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE AUTOMATIC LIGHT CONTROL SENSOR
Refer to PROCEDURE - Step 7
- REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation Antenna)
Refer to PROCEDURE - Step 9
- REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Telephone and GPS Antenna)
Refer to PROCEDURE - Step 10
