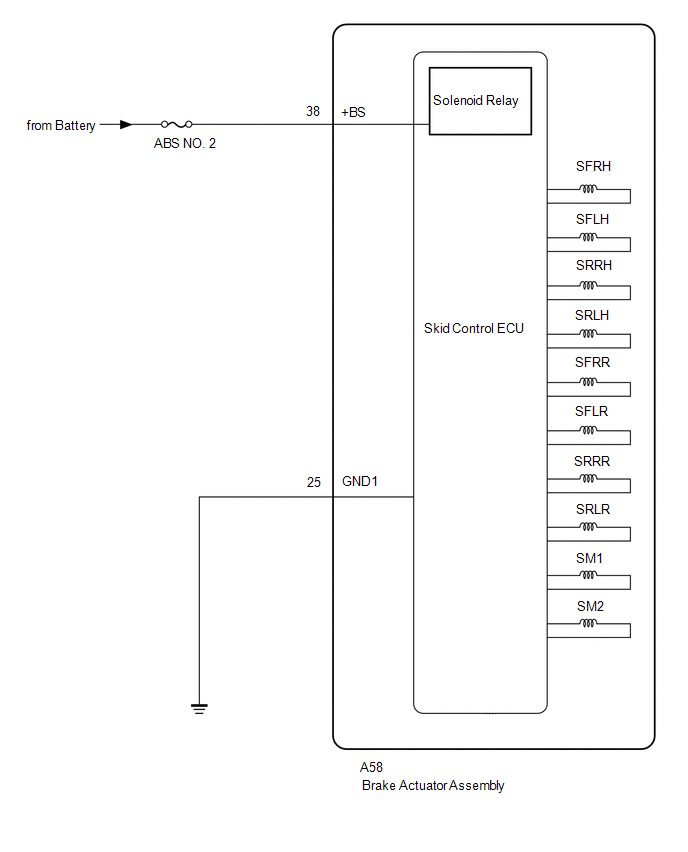

DTC C143A-7E: ABS Solenoid Control Module Actuator Stuck On; DTC C143A-7F: ABS Solenoid Control Module Actuator Stuck Off [08/2019 - ]: Wiring Diagram

GTY889710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
