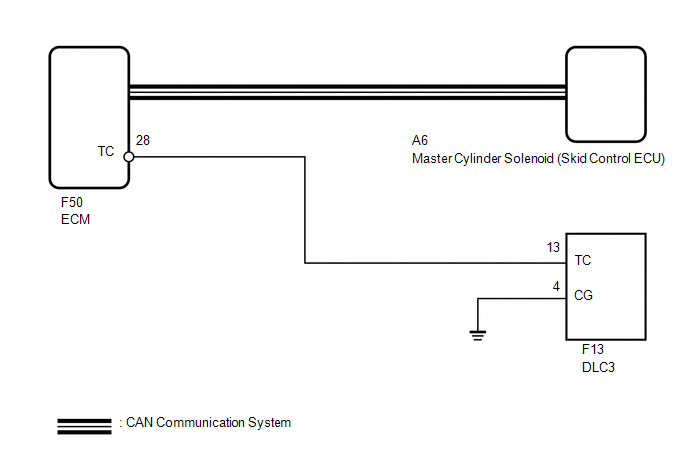

TC and CG Terminal Circuit [08/2015 - 08/2019]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When each warning light continues blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in each ECU is suspected.
