Installation [08/2019 - ]: Procedure

INSTALL KNOB
1. Install the 2 knob.
INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Install the No. 3 instrument panel register assembly.
INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
HINT:

Use the same procedure as for the No. 3 instrument panel register assembly.
INSTALL NO. 2 RADIO BRACKET
1. Install the No. 2 radio bracket with the 5 screws.
INSTALL NO. 1 RADIO BRACKET
1. Install the No. 1 radio bracket with the 5 screws.
INSTALL HAZARD SWITCH WIRE
1. Connect the connector.
2. Attach the 2 clamps to install the hazard switch wire.

INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKETS

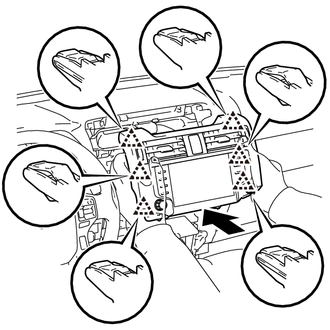

Insert the radio and display receiver assembly with brackets to attach the 6 clips on its backside.

NOTE:

When inserting the radio and display receiver assembly with brackets, do not press its knobs on it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install the radio and display receiver assembly with brackets with the 4 bolts.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

INSTALL HEATER CONTROL ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 3
INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 8
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ]
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [08/2019 - ]
