Installation [08/2019 - ]: Procedure

1. Install the 2 knobs.

Refer to PROCEDURE - Step 1

1. Install the 2 claws and guide to No. 3 instrument panel register assembly.

HINT:

Use the same procedure as for the No. 3 instrument panel register assembly.

1. Install the No. 2 radio bracket with the 3 screws.

1. Install the No. 1 radio bracket with the 3 screws.

1. Connect the connector.
2. Attach the 2 clamps to install the hazard switch wire.

1. Connect each connector.
2. Insert the radio and display receiver assembly with brackets to attach the 6 clips on its backside.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

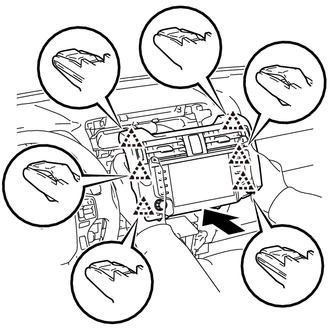

   Install in this Direction

   NOTE:

   When inserting the radio and display receiver assembly with brackets, do not press its knobs on it.

3. Install the radio and display receiver assembly with brackets with the 4 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 8
