Removal [08/2015 - ]: Procedure

REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 12 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]
REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 33 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 32 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 32 [08/2022 - ]

REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

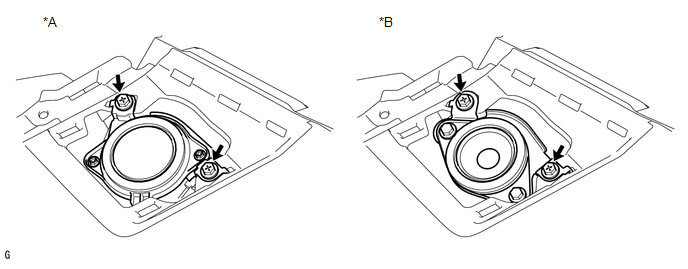

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

for 9 Speakers

for 8 Speakers

Disconnect the connector to remove the front No. 2 speaker assembly.
NOTE:
Do not touch the cone of the front No. 2 speaker assembly.

REMOVE NO. 1 SPEAKER MOUNTING BRACKET (for 8 Speakers)

Remove the 2 bolts and No. 1 speaker mounting bracket.
