Parts Location [08/2015 - 08/2019]: Illustration

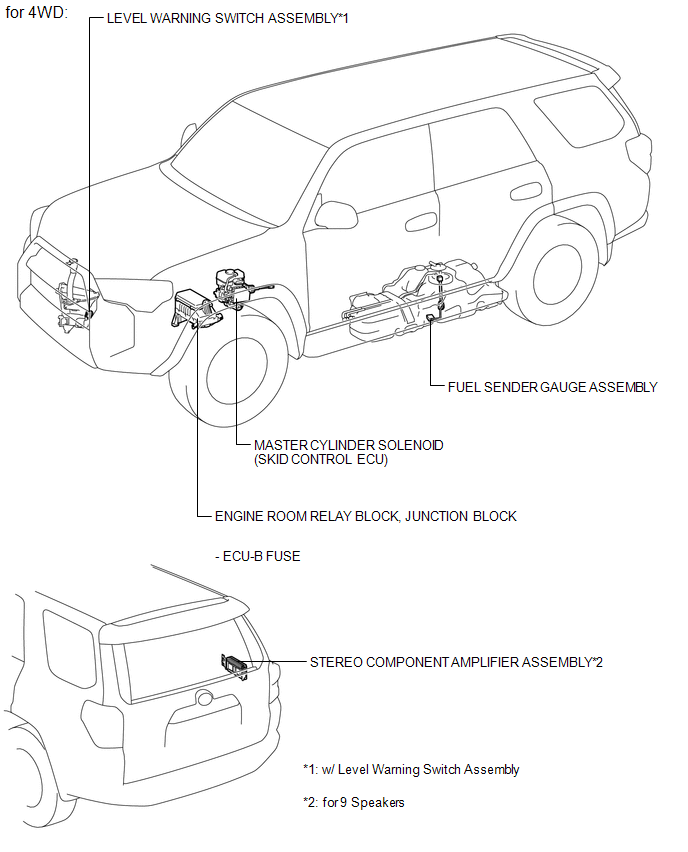

GTY709819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

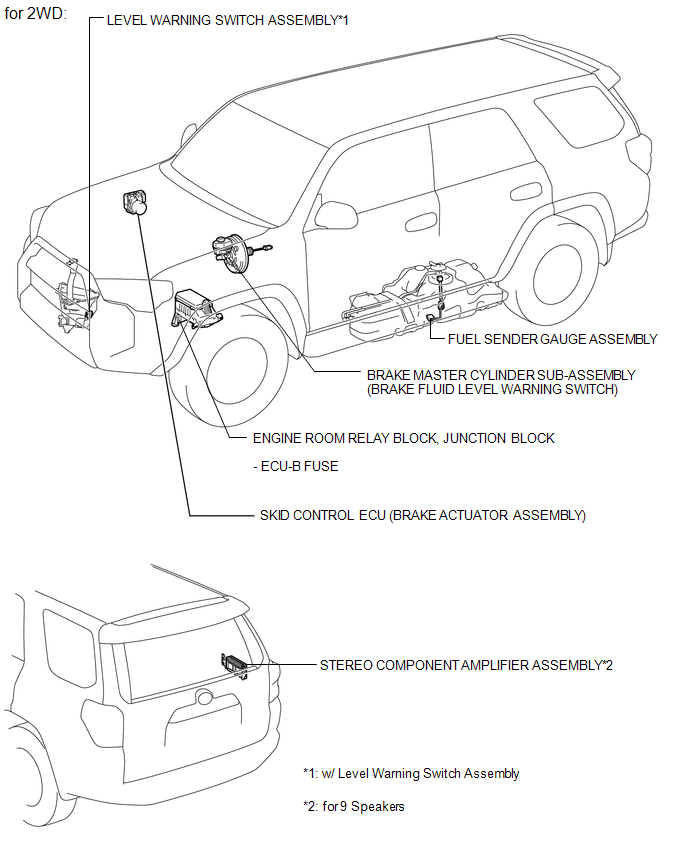

GTY701462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

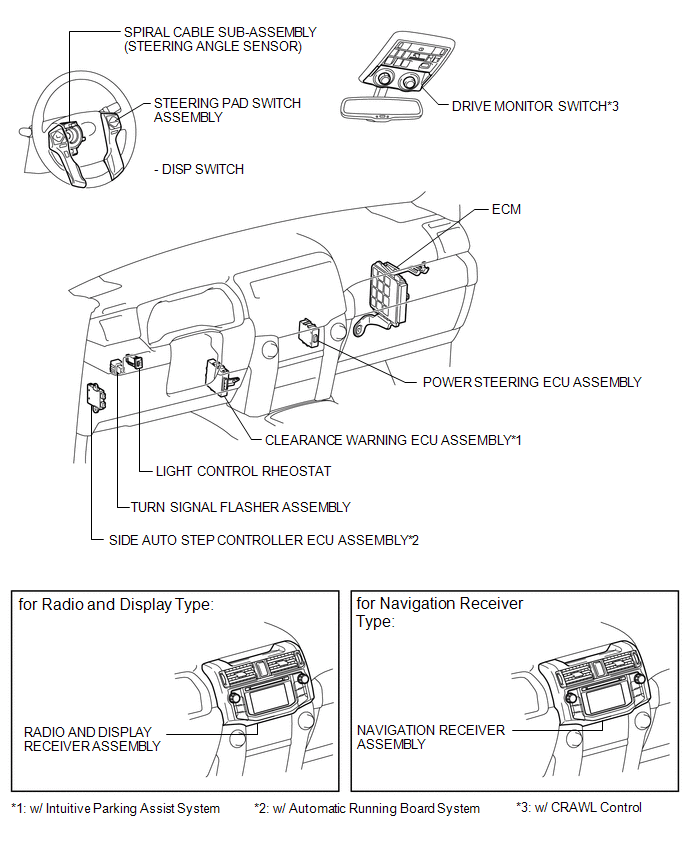

GTY686154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

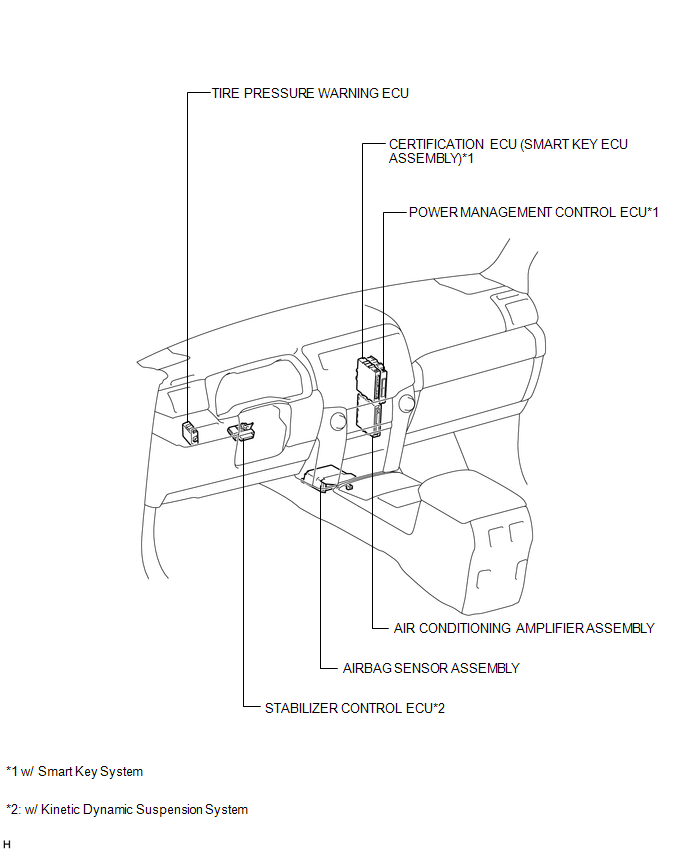

GTY732724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

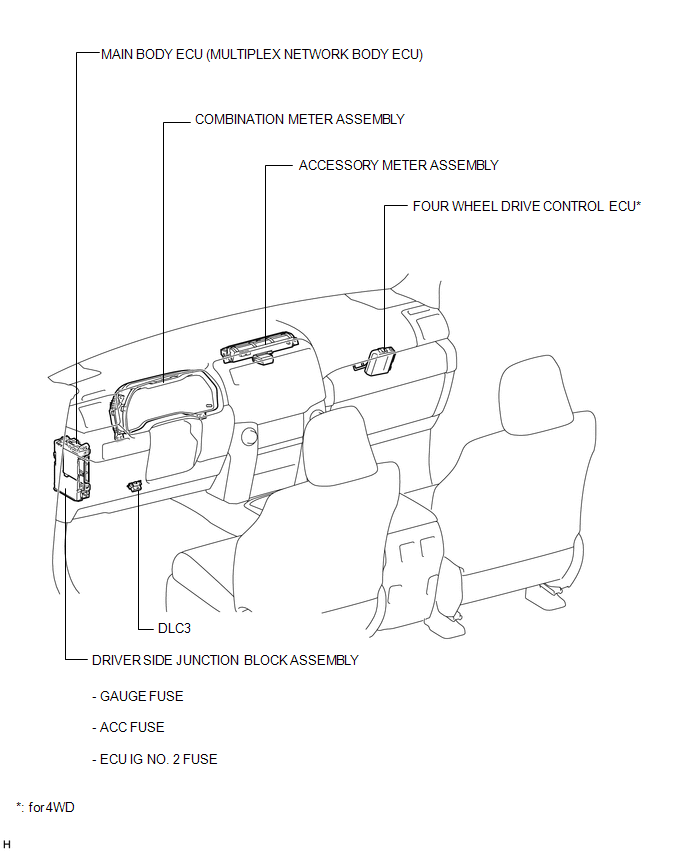

GTY700030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

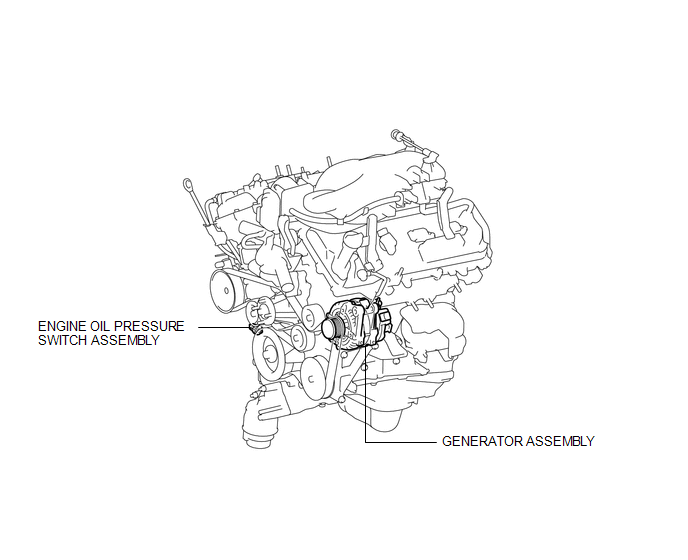

GTY735038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
