Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 16 [08/2019 - 08/2022] , or refer to PROCEDURE - Step 16 [08/2022 - ]

  2. REMOVE LIGHT CONTROL RHEOSTAT

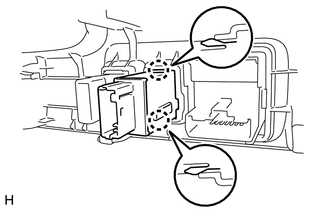

    1. Detach the 2 claws and remove the rheostat.
      GTY232428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
