Disassembly [08/2015 - 08/2019]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

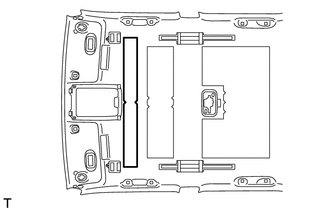

1. Remove the No. 1 roof silencer pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/o Sliding Roof:

   Remove the 2 No. 2 roof silencer pads.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   w/ Sliding Roof:

   Remove the No. 2 roof silencer pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

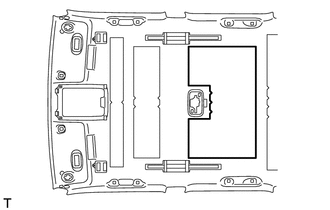

1. Remove the No. 3 roof silencer pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

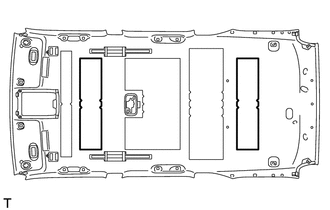

1. w/o Sliding Roof:

   Remove the No. 4 roof silencer pad.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   w/ Sliding Roof:

   Remove the No. 4 roof silencer pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the other vanity light.

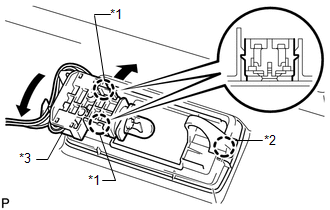

1. Detach the 2 claws labeled A and separate the bulb holder from the vanity light as shown in the illustration.
2. Detach the claw labeled B and remove the vanity light.
   TEXT IN ILLUSTRATION



   *1	Claw A
   *2	Claw B
   *3	Bulb Holder

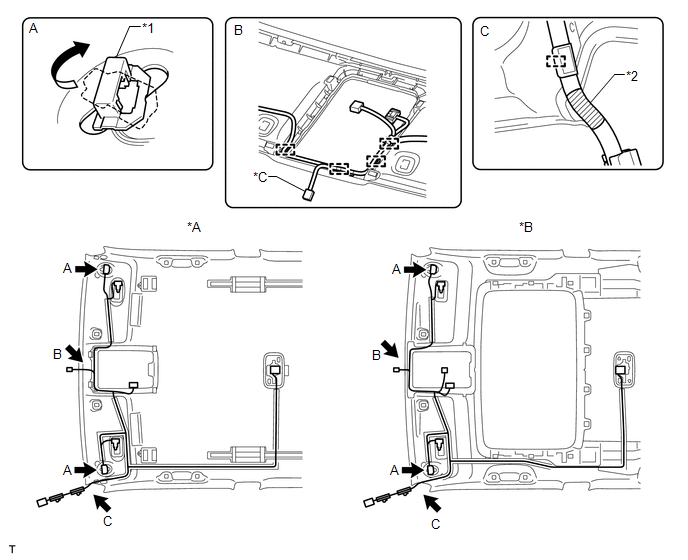

1. Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.
2. Detach each clamp and remove the tape and No. 1 roof wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	w/o Sliding Roof	*B	w/ Sliding Roof
   *C	w/ EC Mirror	-	-
   *1	Visor Connector	*2	Marking Tape

1. w/o Sliding Roof:

   Remove the No. 2 antenna cord sub-assembly (Refer to PROCEDURE - Step 3 ).

2. w/ Sliding Roof:

   Remove the No. 2 antenna cord sub-assembly (Refer to PROCEDURE - Step 4 ).
