Removal [08/2019 - ]: Procedure

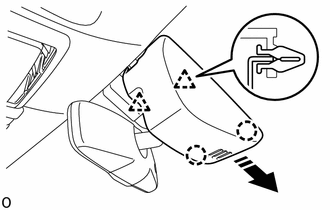

1. Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   NOTE:

   To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

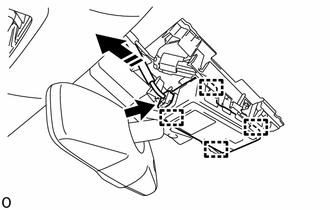

1. Disengage the 2 claws in the direction indicated by the arrow (1) in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction (1)
   	Remove in this Direction (2)

2. Disengage the 4 guides in the direction indicated by the arrow (2) in the illustration to remove the forward recognition latch.

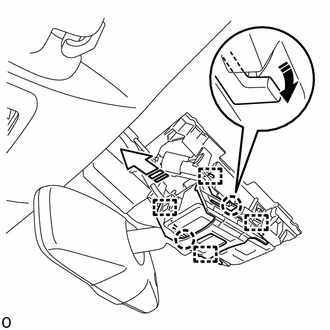

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Disengage the 4 guides to remove the forward recognition camera as shown in the illustration.
   NOTE:

   • Do not pull the harness forcibly when disconnecting the connector.
   • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
   • If the forward recognition camera has been struck or dropped, replace it with a new one.
   • Do not apply excessive force.

See step  2
