Installation [12/2012 - 08/2017]: Procedure
- INSTALL STARTER ASSEMBLY
- Install the starter assembly with the 2 bolts.
Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)
- Connect the starter wire with the nut.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
- Connect the starter connector.
- Install the terminal cap.
- Install the starter assembly with the 2 bolts.
- INSTALL BATTERY BRACKET REINFORCEMENT
- Install the battery bracket reinforcement with the 2 bolts.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Install the battery bracket reinforcement with the 2 bolts.
- INSTALL FRONT BATTERY BRACKET
- Install the front battery bracket with the 4 bolts.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Install the front battery bracket with the 4 bolts.
- INSTALL BATTERY TRAY
- INSTALL BATTERY
- INSTALL BATTERY INSULATOR
- INSTALL BATTERY CLAMP SUB-ASSEMBLY

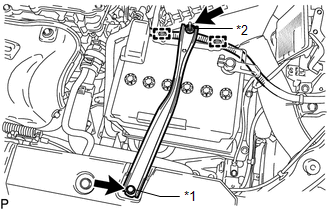

- Attach the hook of the battery clamp sub-assembly to the front battery bracket.
*1 Bolt *2 Nut - Partially tighten the nut and temporarily install the bolt.
- Adjust the battery clamp position.
- Tighten the nut and bolt.
for bolt
Torque: 17 N*m (173 kgf*cm, 13 ft.*lbf)
for nut
Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)
- Attach the 2 wire harness clamps.
- Attach the hook of the battery clamp sub-assembly to the front battery bracket.
- CONNECT CABLE TO POSITIVE BATTERY TERMINAL
- Connect the cable to the positive (+) battery terminal.
Torque: 5.4 N*m (55 kgf*cm, 4 ft.*lbf)
- Connect the cable to the positive (+) battery terminal.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2012 - 10/2015] Refer to INITIALIZATION [10/2015 - 08/2016] Refer to INITIALIZATION [08/2016 - ]
