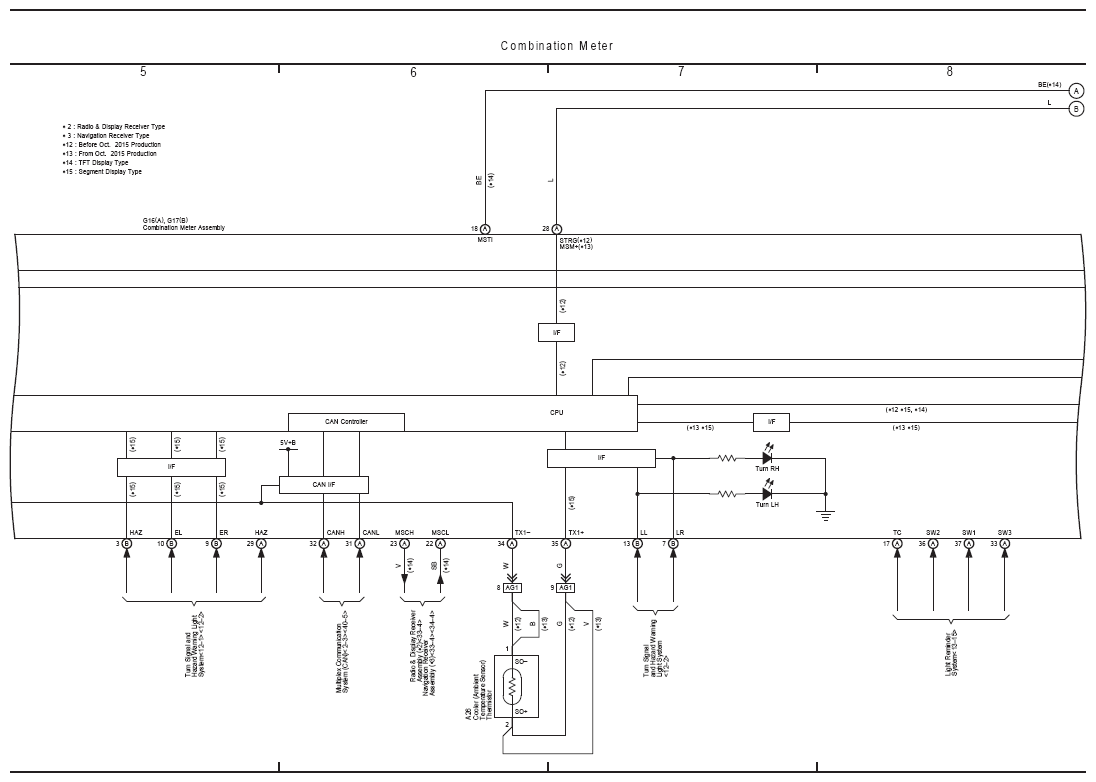

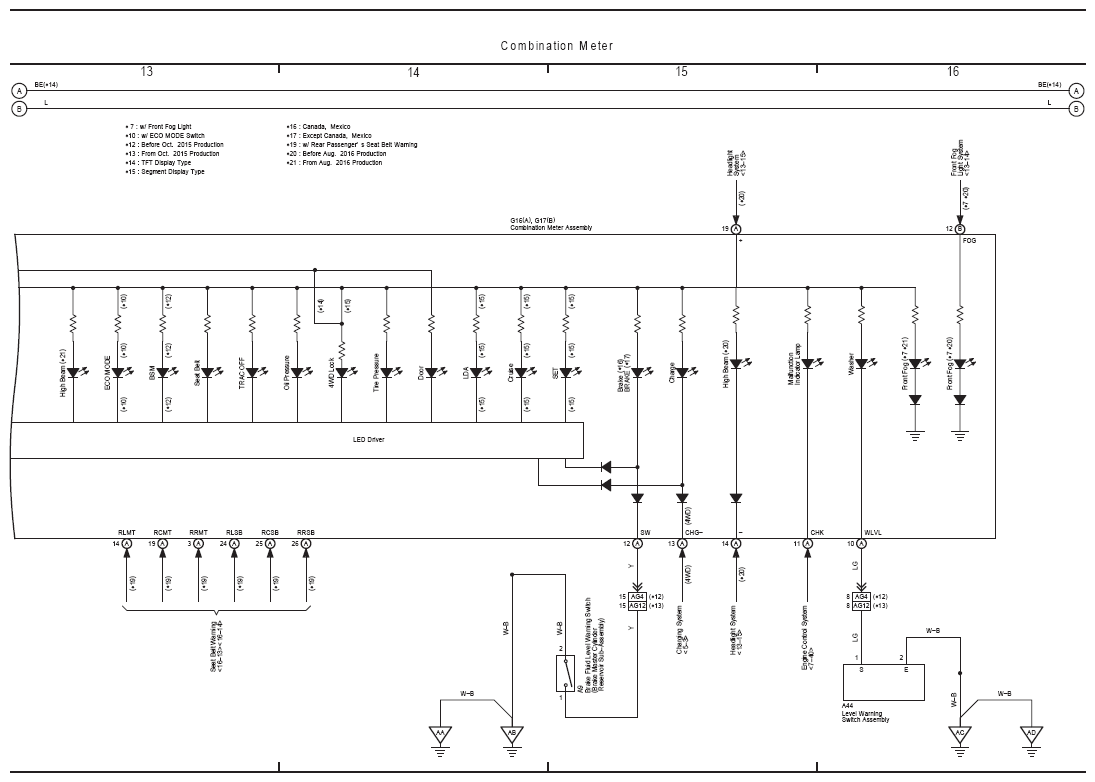

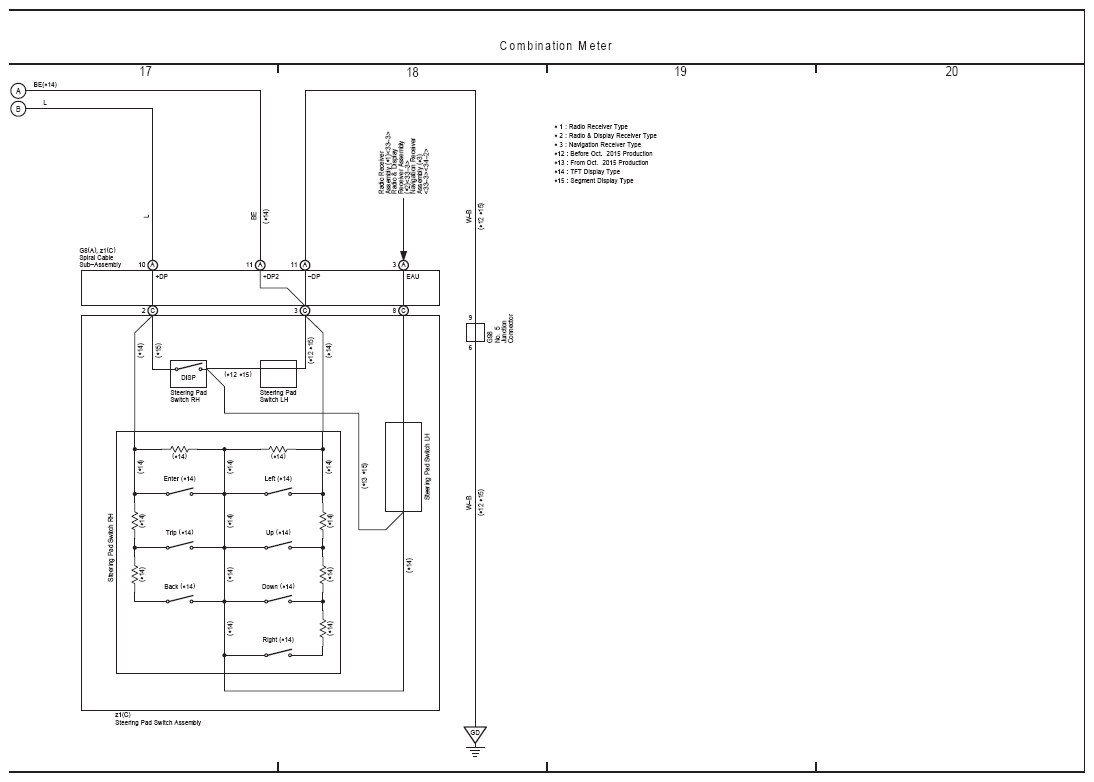

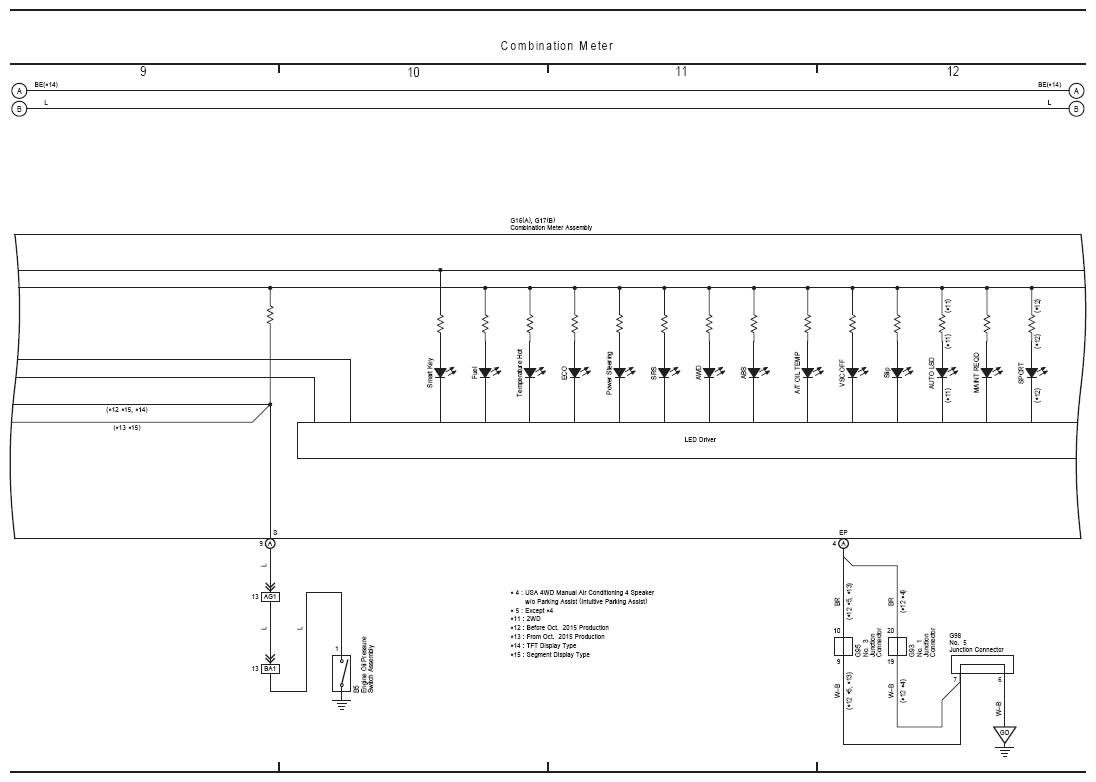

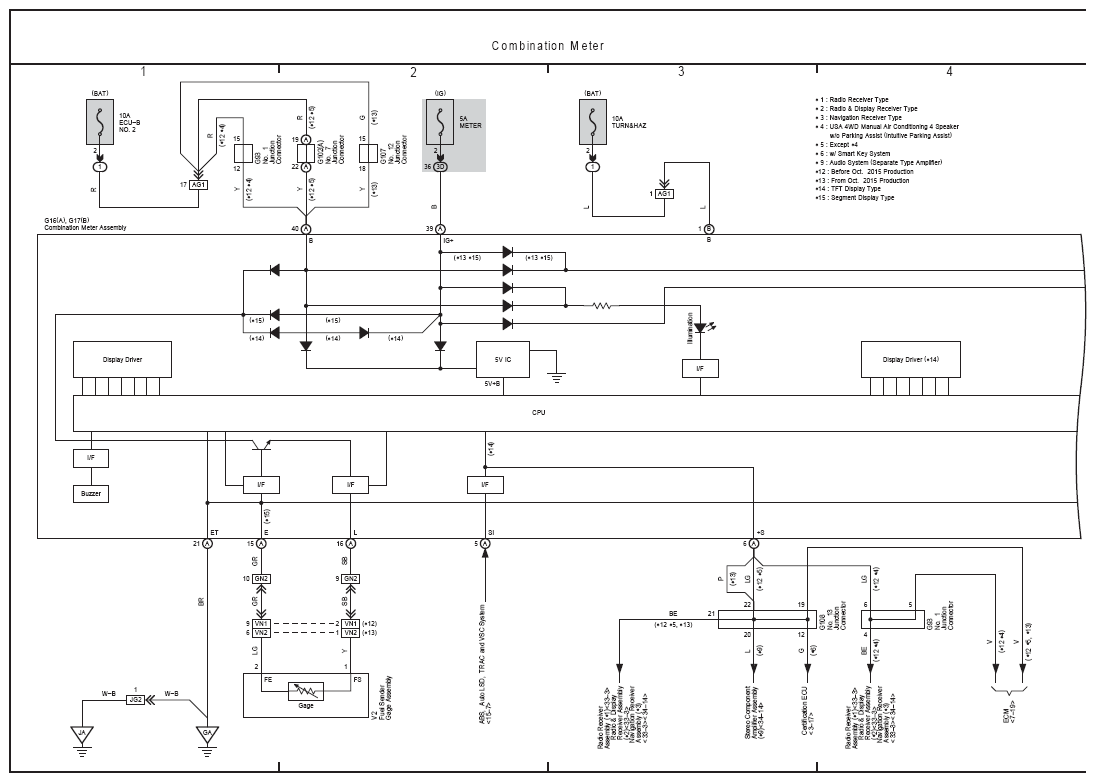

Home >> Toyota >> 2016 >> RAV4 XLE, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Combination Meter
