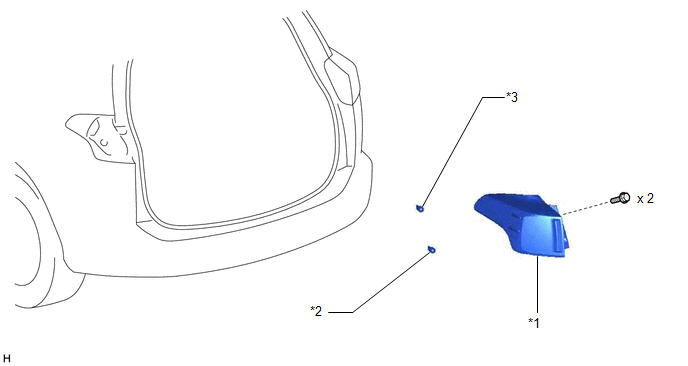

Components [12/2012 - 10/2015]: Illustration

GTY375109

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR COMBINATION LIGHT LENS AND BODY LH	*2	REAR TURN SIGNAL LIGHT BULB
*3	TAIL AND STOP LIGHT BULB	-	-
