Removal [12/2012 - 10/2015]: Procedure

  1. REMOVE FRONT BUMPER COVER

    Refer to REMOVAL [12/2012 - 10/2015]

  2. REMOVE HEADLIGHT ASSEMBLY LH

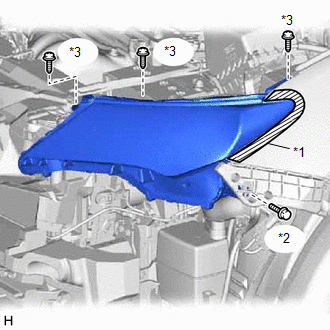

    GTY375091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Protective Tape
    *2 Bolt
    *3 Screw
    1. Put protective tape around the headlight assembly LH.
    2. Remove the bolt and 3 screws.
    3. Disconnect each connector to remove the headlight assembly LH.
