Removal [12/2012 - 11/2013]: Procedure

  1. REMOVE STEERING PAD ASSEMBLY

    Refer to REMOVAL [12/2012 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

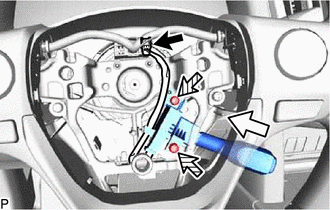

    1. Remove the 2 screws.
      GTY370216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the cruise control main switch as shown in the illustration.
    3. Disconnect the connector and remove the cruise control switch wire.
      GTY370212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
