Components [12/2012 - ]: Illustration

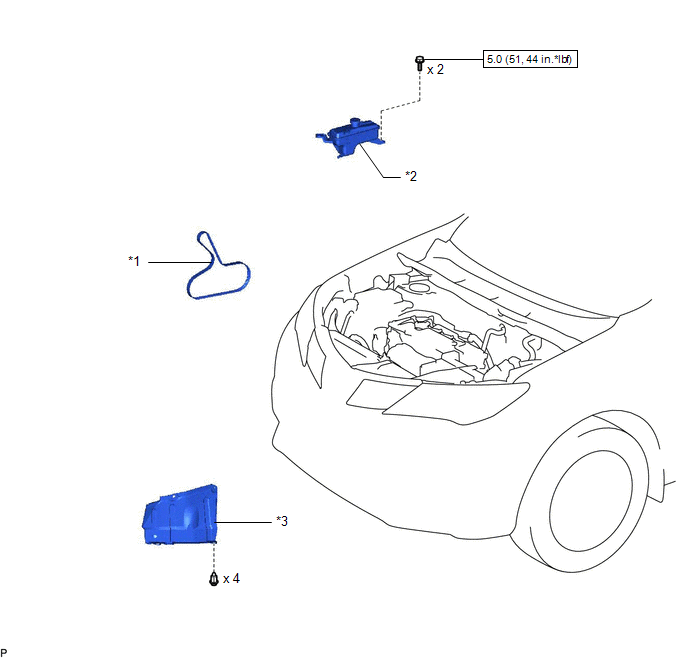

Fig 1: Identifying Drive Belt Replacement Components With Torque Specifications [12/2012 - ]
GTY374246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FAN AND GENERATOR V BELT *2 RADIATOR RESERVOIR ASSEMBLY
*3 REAR ENGINE UNDER COVER RH - -
Specified torque: N*m (kgf*cm, ft.*lbf) - -
