Components [12/2012 - 10/2015]: Illustration
| Callout | Description | Callout | Description |
| *1 | THROTTLE WITH MOTOR BODY ASSEMBLY | *2 | NO. 1 WATER BY-PASS HOSE |
| *3 | NO. 2 WATER BY-PASS HOSE | *4 | GASKET |
| *5 | FUEL TUBE BRACKET | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

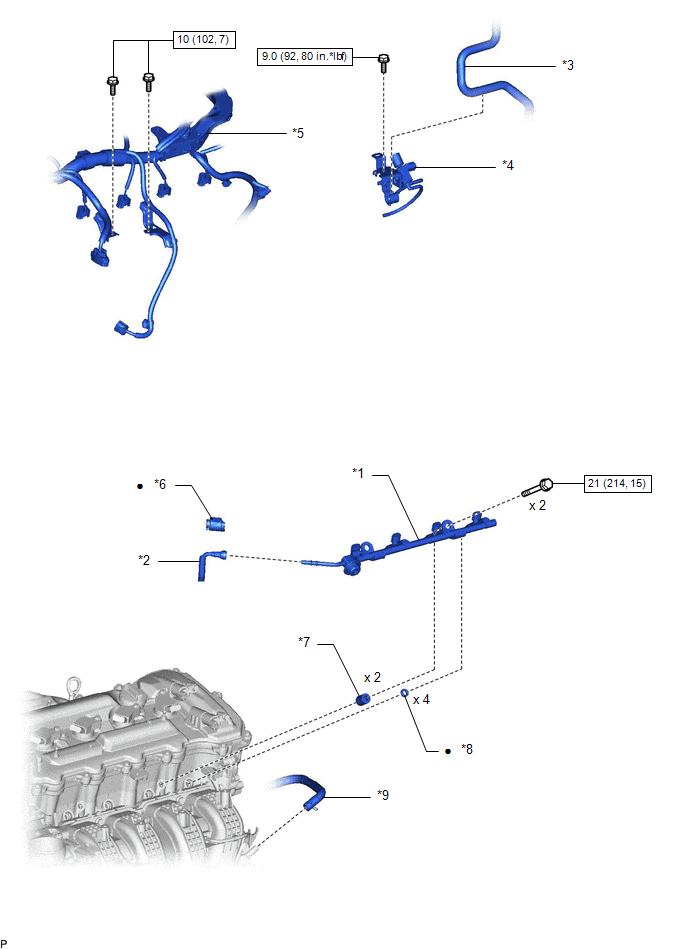

| Callout | Description | Callout | Description |
| *1 | FUEL DELIVERY PIPE | *2 | FUEL TUBE SUB-ASSEMBLY |
| *3 | UNION TO CHECK VALVE HOSE | *4 | VACUUM SWITCHING VALVE ASSEMBLY (for ACIS) |
| *5 | WIRE HARNESS | *6 | NO. 2 FUEL PIPE CLAMP |
| *7 | FUEL DELIVERY SPACER | *8 | INJECTOR VIBRATION INSULATOR |
| *9 | NO. 2 PCV HOSE | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
| Callout | Description | Callout | Description |
| *1 | INTAKE MANIFOLD | *2 | NO. 2 PCV HOSE |
| *3 | WIRE HARNESS | *4 | VACUUM SWITCHING VALVE ASSEMBLY (for ACIS) |
| *5 | GASKET | *6 | VACUUM HOSE |
| *7 | WIRING HARNESS CLAMP BRACKET | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

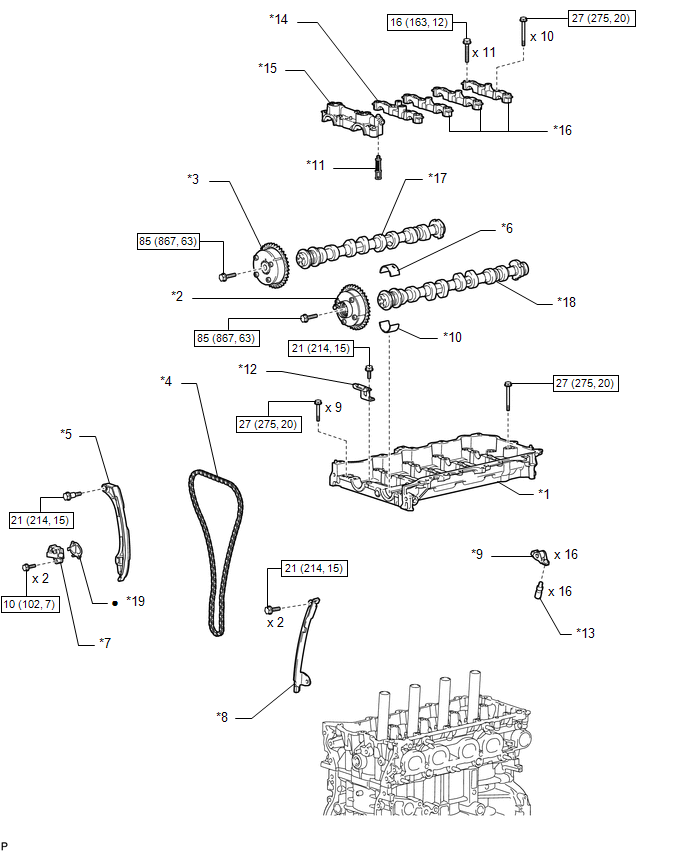

| Callout | Description | Callout | Description |
| *1 | CAMSHAFT HOUSING SUB-ASSEMBLY | *2 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *3 | CAMSHAFT TIMING GEAR ASSEMBLY | *4 | CHAIN SUB-ASSEMBLY |
| *5 | CHAIN TENSIONER SLIPPER | *6 | NO. 1 CAMSHAFT BEARING |
| *7 | NO. 1 CHAIN TENSIONER ASSEMBLY | *8 | NO. 1 CHAIN VIBRATION DAMPER |
| *9 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY | *10 | NO. 2 CAMSHAFT BEARING |
| *11 | OIL CONTROL VALVE FILTER | *12 | TIMING CHAIN GUIDE |
| *13 | VALVE LASH ADJUSTER ASSEMBLY | *14 | NO. 2 CAMSHAFT BEARING CAP |
| *15 | NO. 1 CAMSHAFT BEARING CAP | *16 | NO. 3 CAMSHAFT BEARING CAP |
| *17 | CAMSHAFT | *18 | NO. 2 CAMSHAFT |
| *19 | GASKET | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

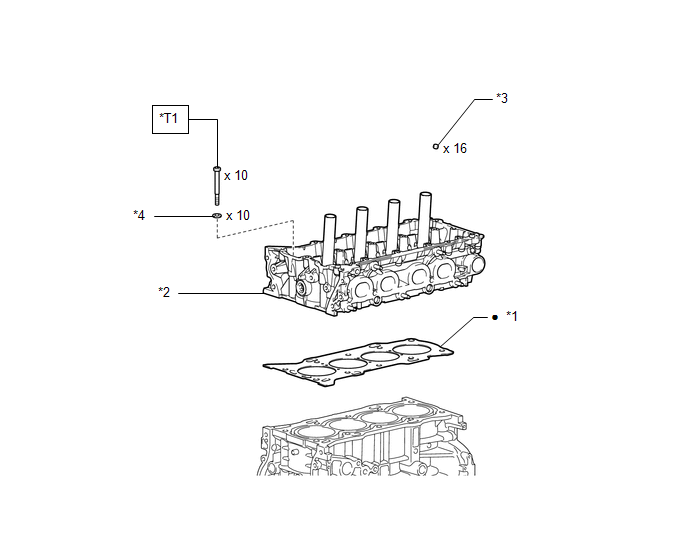

| *1 | CYLINDER HEAD GASKET | *2 | CYLINDER HEAD SUB-ASSEMBLY |
| *3 | VALVE STEM CAP | *4 | PLATE WASHER |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| *T1 | 1st: 36 N*m (367 kgf*cm, 27 ft.*lbf) 2nd: 36 N*m (367 kgf*cm, 27 ft.*lbf) 3rd: Turn 90° 4th: Turn 90° |
- | - |
