Components [12/2012 - ]: Illustration

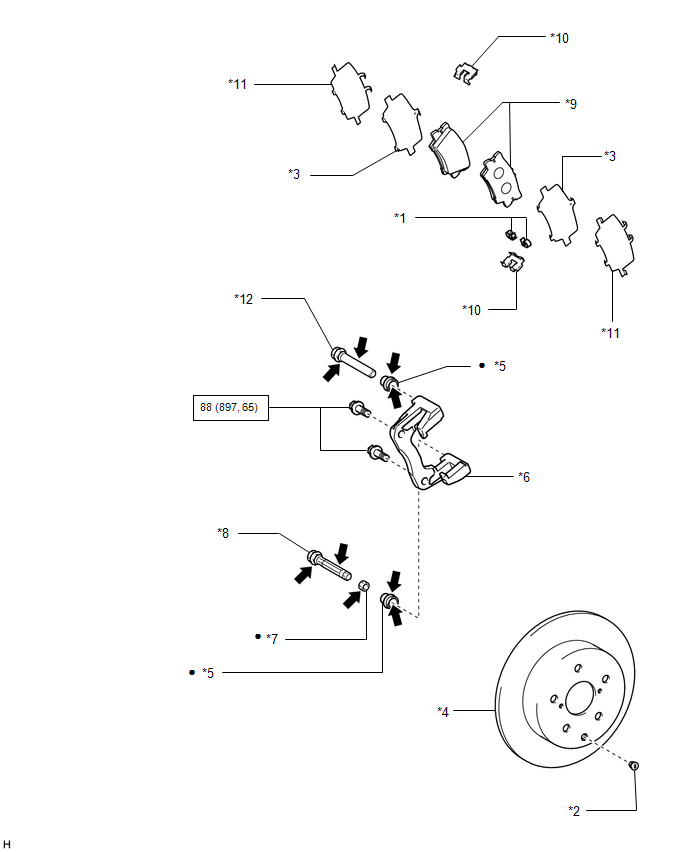

Fig 1: Rear Brake Components With Torque Specifications (1 Of 2) [12/2012 - ]

GTY381775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	PAD WEAR INDICATOR PLATE	*2	PARKING BRAKE SHOE ADJUSTING HOLE PLUG
*3	NO. 1 ANTI-SQUEAL SHIM	*4	REAR DISC
*5	REAR DISC BRAKE BUSH DUST BOOT	*6	REAR DISC BRAKE CYLINDER MOUNTING LH
*7	REAR DISC BRAKE CYLINDER SLIDE BUSH	*8	REAR DISC BRAKE CYLINDER SLIDE PIN
*9	REAR DISC BRAKE PAD KIT	*10	REAR DISC BRAKE PAD SUPPORT PLATE
*11	NO. 2 ANTI-SQUEAL SHIM	*12	REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-

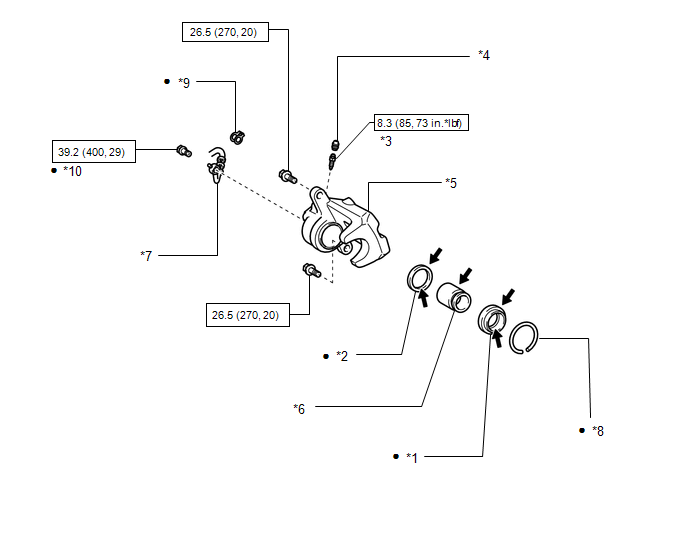

Fig 1: Rear Brake Components With Torque Specifications (2 Of 2) [12/2012 - ]

GTY382834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CYLINDER BOOT	*2	PISTON SEAL
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
*5	REAR DISC BRAKE CYLINDER ASSEMBLY LH	*6	REAR DISC BRAKE PISTON
*7	REAR FLEXIBLE HOSE LH	*8	SET RING
*9	GASKET	*10	UNION BOLT
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-
