Installation [12/2012 - ]: Procedure

  1. INSTALL REAR FLEXIBLE HOSE LH
    NOTE:

    When replacing both the left and right rear flexible hoses, as the left and right hoses each have a different shape, be sure to check the part number to confirm whether the hose is the left or right one before installing it.

    1. Connect the flexible hose with a new gasket and a new union bolt to the disc brake cylinder.

      Torque: 39.2 N*m (400 kgf*cm, 29 ft.*lbf)

      HINT:

      Install the flexible hose lock securely in the lock hole in the cylinder.

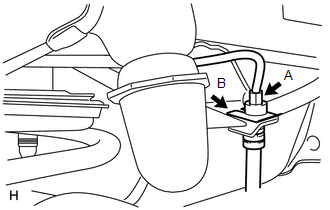

    2. Set the flexible hose into place at the connecting point with the brake tube labeled A, and then install a new clip labeled B.
      GTY377586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a union nut wrench, connect the flexible hose to the brake tube labeled A while holding the flexible hose with a wrench.

      Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

      NOTE:
      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.
      • Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench (Refer to PRECAUTION [12/2012 - ] ).
  2. REMOVE COWL TOP VENTILATOR LOUVER BRACKET LH

    Refer to PROCEDURE - Step 1

  3. BLEED BRAKE LINE

    Refer to PROCEDURE - Step 2

  4. INSTALL COWL TOP VENTILATOR LOUVER BRACKET LH

    Refer to PROCEDURE - Step 3

  5. INSTALL REAR WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
