Components [12/2012 - ]: Illustration

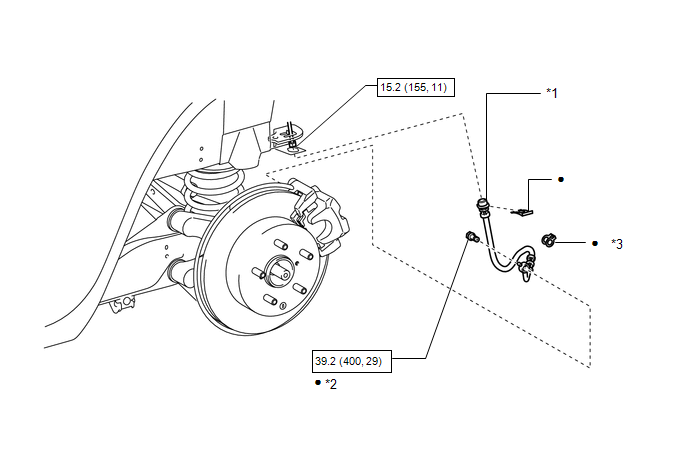

Fig 1: Rear Brake Flexible Hose Components With Torque Specifications [12/2012 - ]
GTY381945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR FLEXIBLE HOSE LH *2 UNION BOLT
*3 GASKET - -
Specified torque: N*m (kgf*cm, ft.*lbf) • Non-reusable part
