Home >> Toyota >> 2016 >> RAV4 XLE, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) (Except Hybrid) >> Roof Headlining >> Removal [12/2012 - 10/2015] >> Procedure

Removal [12/2012 - 10/2015]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [12/2012 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2012 - 10/2015]

  3. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)
    1. Release the 4 locks and remove the package tray trim pocket sub-assembly.

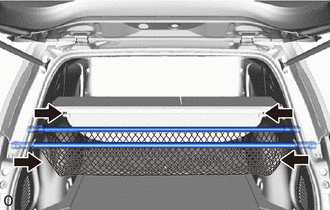

      GTY380331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

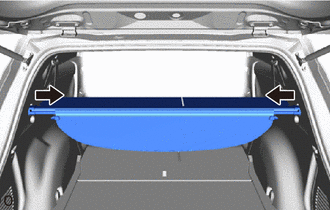

    1. Release the 2 locks and remove the tonneau cover assembly.
      GTY380322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DECK BOARD ASSEMBLY (for Compact Spare Tire)
    1. Remove the deck board assembly.

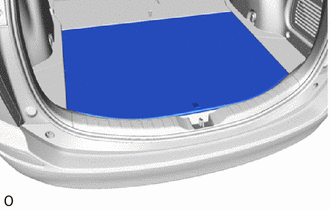

      GTY380325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DECK BOARD ASSEMBLY (for Full Size Spare Tire)

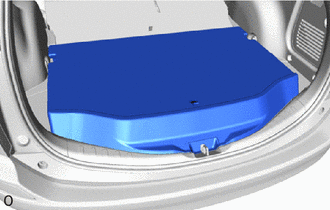

    1. Remove the deck board assembly.
      GTY380324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE DECK FLOOR BOX LH
    GTY380320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

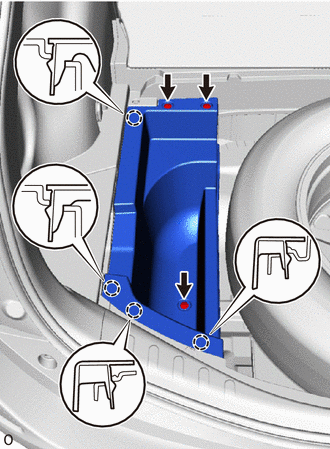

    1. Using a clip remover, remove the 3 clips.
    2. Detach the 4 claws and remove the deck floor box LH.
  8. REMOVE REAR FLOOR FINISH PLATE (for Compact Spare Tire)
    GTY380319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

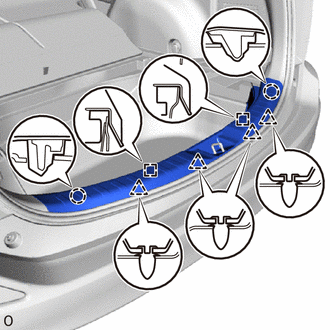

    1. Detach the 2 claws, 4 clips and 2 guides and remove the rear floor finish plate.
  9. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

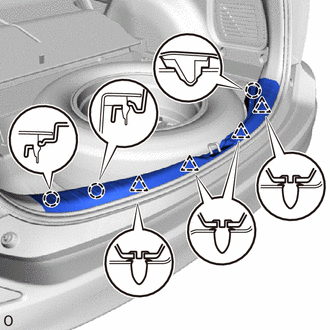

    1. Detach the 3 claws and 4 clips and remove the rear deck trim cover.
      GTY380318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE (for Compact Spare Tire)
    1. Open the rear No. 1 floor board.
    2. Remove the 4 screws.
      GTY380317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

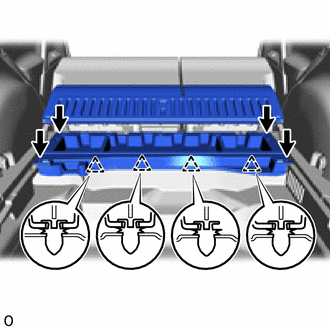

    3. Detach the 4 clips and remove the rear No. 1 floor mat support side plate together with the rear No. 1 floor board.
  11. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE (for Full Size Spare Tire)
    1. Open the rear No. 1 floor board.
    2. Remove the 4 screws.
      GTY380321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

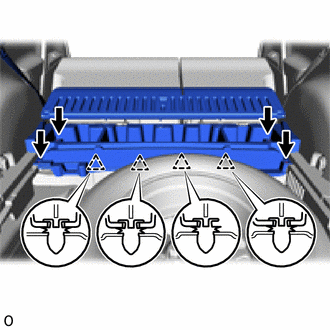

    3. Detach the 4 clips and remove the rear No. 1 floor mat support side plate together with the rear No. 1 floor board.
  12. REMOVE REAR SEAT ASSEMBLY

    for LH Side:

    Refer to REMOVAL [12/2012 - 08/2016]

    for RH Side:

    Refer to REMOVAL [12/2012 - 08/2016]

  13. REMOVE FRONT DOOR SCUFF PLATE LH

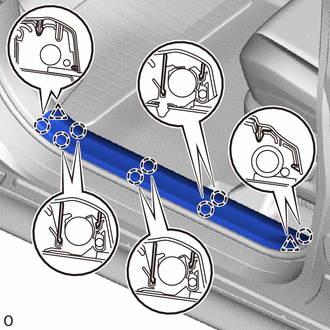

    1. Detach the 8 claws and 2 clips and remove the front door inside scuff plate LH.
      GTY380410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  15. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.

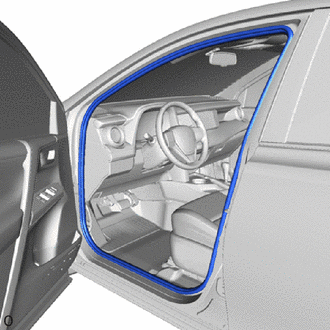

      GTY380773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  17. REMOVE REAR DOOR SCUFF PLATE LH

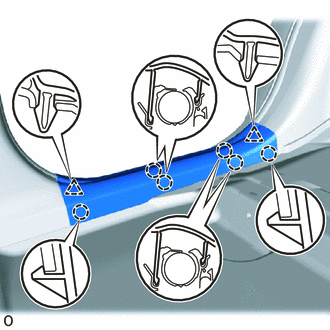

    1. Detach the 2 claws and 6 clips and remove the rear door scuff plate LH.
      GTY380297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  19. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

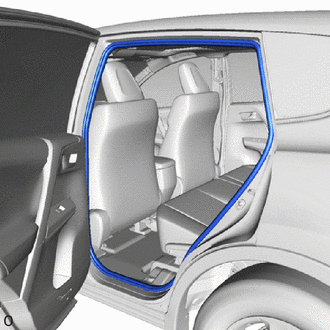

    GTY380772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear door opening trim weatherstrip LH.
  20. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the screw and 2 bolts.
    2. Remove the bolt and disconnect the rear seat outer belt floor anchor.
    3. Open the tether anchor set bracket cover.
    4. Remove the bolt and tether anchor set bracket.
    5. Remove the bolt and luggage hold belt striker assembly.
    6. Detach the 6 claws and 4 clips and remove the deck trim side panel assembly LH.
    7. Disconnect the connector.

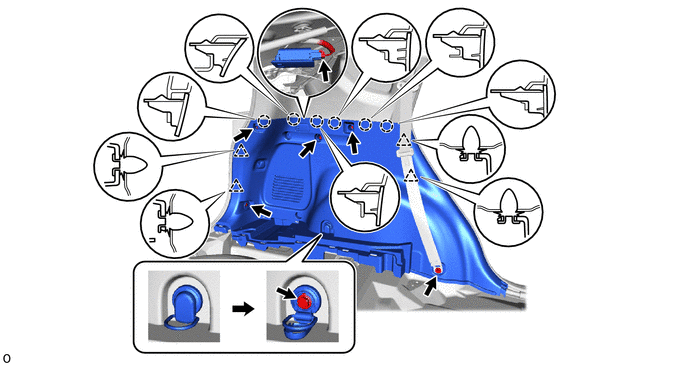

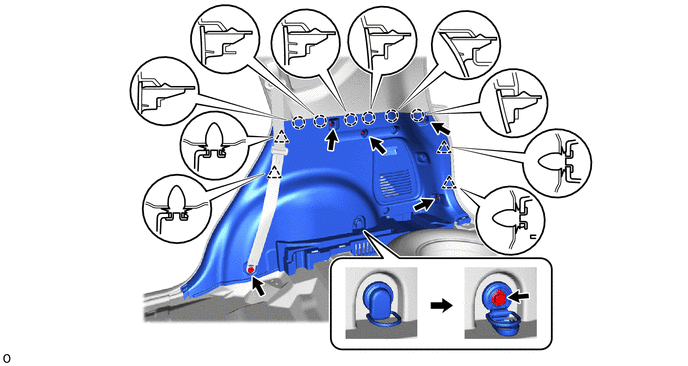

      GTY380302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the screw and 2 bolts.
    2. Remove the bolt and disconnect the rear seat outer belt floor anchor.
    3. Open the tether anchor set bracket cover.
    4. Remove the bolt and tether anchor set bracket.
    5. Remove the bolt and luggage hold belt striker assembly.
    6. Detach the 6 claws and 4 clips and remove the deck trim side panel assembly RH.
      GTY380310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE SEAT BELT ANCHOR COVER CAP

    Refer to PROCEDURE - Step 12

  24. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

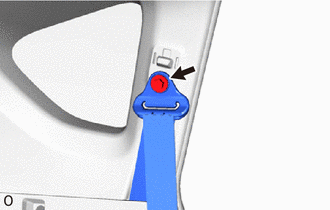

    1. Remove the bolt and disconnect the rear seat outer belt shoulder anchor.
      GTY380307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

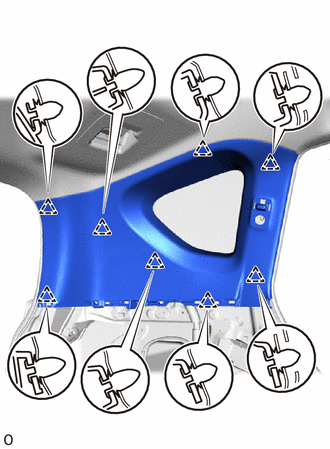

    2. Detach the 8 clips and remove the inner roof side garnish assembly LH.
      GTY380308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  26. REMOVE SHOULDER BELT ANCHOR COVER RH

    Refer to PROCEDURE - Step 1

  27. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 7

  28. REMOVE LOWER CENTER PILLAR GARNISH LH

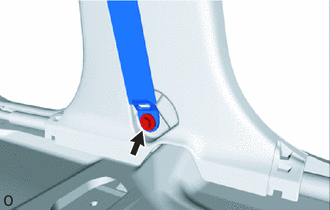

    1. Remove the bolt and disconnect the front seat outer belt floor anchor.
      GTY380299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 clips and 2 claws and remove the lower center pillar garnish LH.

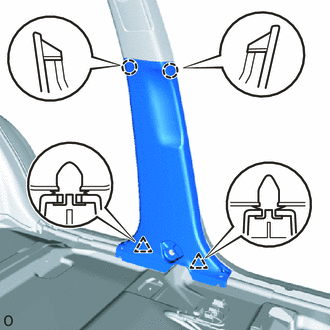

      GTY380296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  30. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 clips.

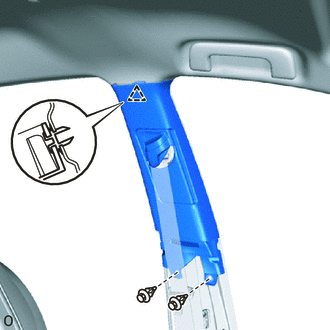

      GTY380298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and remove the center pillar garnish LH.
    3. Pass the front seat outer belt floor anchor through the hole of the center pillar garnish LH.
  31. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  32. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper part of the front pillar garnish LH toward the inside of the cabin and detach the 2 front pillar garnish clips.

      HINT:

      Make the front pillar garnish LH hang down from the front pillar garnish clip.

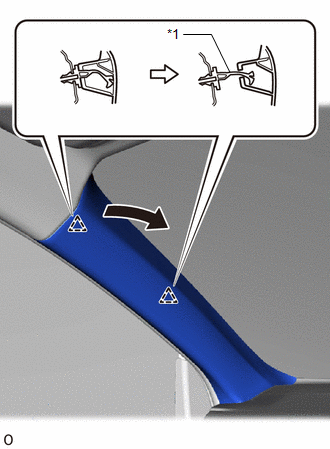

      GTY376697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip

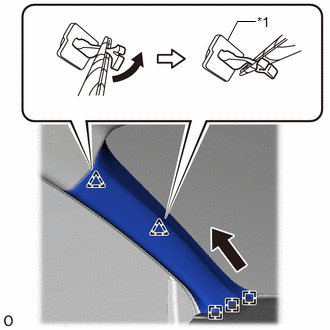

    2. GTY364891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip
      Protective Tape

      Turn the ends of the 2 front pillar garnish clips 90° with needle-nose pliers and disconnect them from the front pillar garnish LH.

      HINT:

      Tape the tips of the needle-nose pliers before use.

    3. Detach the 3 guides and remove the front pillar garnish LH.
    4. While pulling the front pillar garnish clip in direction A with a finger, insert a screwdriver at the position shown in the illustration.
      GTY609195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. While pulling the front pillar garnish clip in direction B with a finger, insert a screwdriver at the position shown in the illustration to detach the front pillar garnish clip.
      NOTE:

      If the front pillar garnish clip is damaged, replace it with a new one.

      GTY539299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

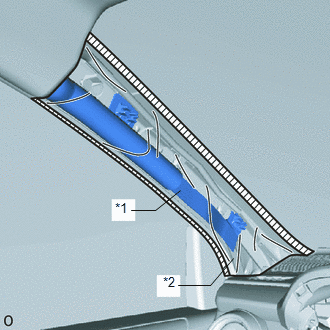

    6. GTY363972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *2 Protective Cover
      Adhesive Tape

      Protect the curtain shield airbag assembly LH.

      1. Completely cover the curtain shield airbag assembly LH with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish assembly LH is removed.

  33. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  34. REMOVE UPPER INSTRUMENT PANEL

    Refer to REMOVAL [12/2012 - 10/2015]

  35. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly LH.

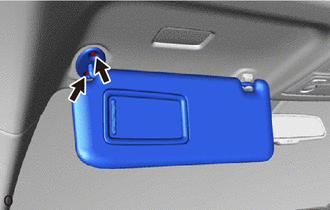

      GTY380766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  37. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for both visor holders.

    1. Turn the visor holder clockwise approximately 45° and pull it as shown in the illustration.

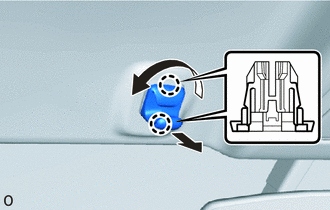

      GTY384361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the visor holder.
  38. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  39. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for all assist grips.

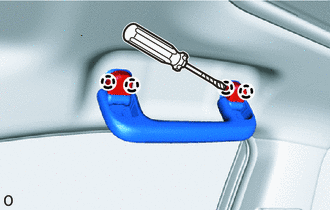

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.
      GTY365809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Tape the screwdriver tip before use.

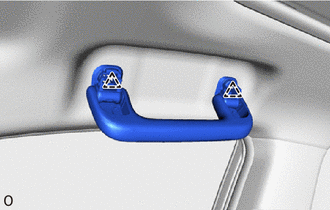

    2. Detach the 2 clips and remove the assist grip sub-assembly.
      GTY384362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  41. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)

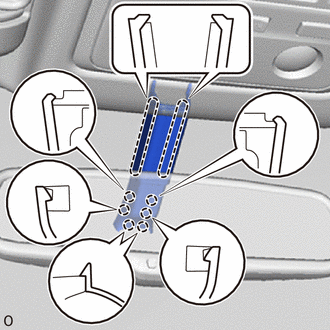

    1. Detach the 8 claws and remove the inner rear view mirror stay holder cover.
      GTY380782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)

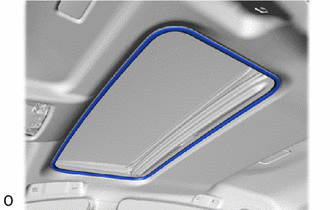

    1. Remove the sun roof opening trim moulding.
      GTY380774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE ROOF HEADLINING ASSEMBLY

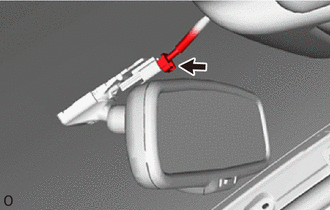

    1. GTY384365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/ EC Mirror:

      Disconnect the connector.

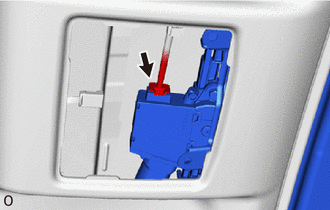

    2. GTY380784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/ Sliding Roof:

      Disconnect the connector.

    3. Disconnect the connector from the rear pillar RH.

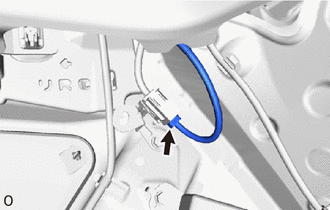

      GTY380785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

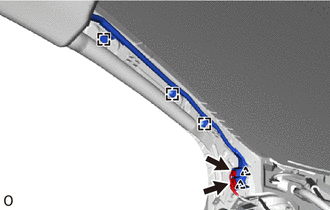

    4. GTY384363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 2 connectors and detach the 2 clips and 3 wire harness clamps from the front pillar LH.

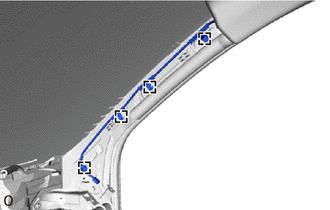

    5. GTY380778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 wire harness clamps from the front pillar RH.

    6. w/o Sliding Roof:

      Remove the 5 clips.

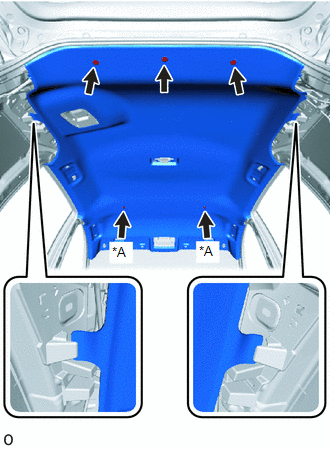

      GTY371517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Sliding Roof
    7. w/ Sliding Roof:

      Remove the 3 clips.

    8. Remove the roof headlining assembly as shown in the illustration.
      NOTE:

      Be careful not to damage the roof headlining assembly when taking it out.

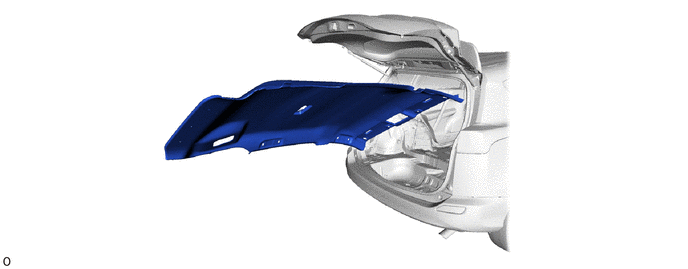

      GTY380788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE REAR SIDE RAIL SPACER LH

    HINT:

    When removing or replacing the rear side rail spacer LH, be sure to remove the curtain shield airbag assembly LH.

    Refer to PROCEDURE - Step 4

    1. Remove the bolt.

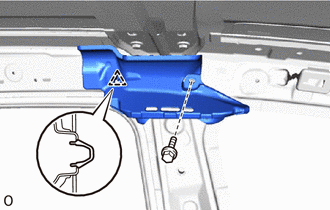

      GTY380802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and remove the rear side rail spacer LH.
  45. REMOVE REAR SIDE RAIL SPACER RH

    HINT:

    Use the same procedure described for the LH side.

  46. REMOVE REAR NO. 2 SIDE RAIL SPACER LH

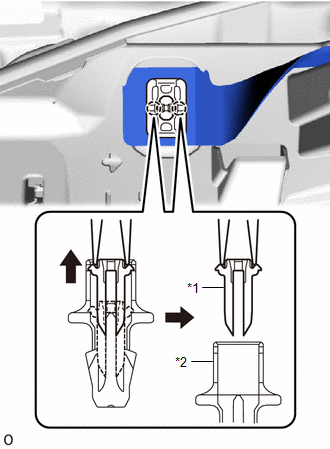

    1. Using needle-nose pliers, release the lock by pinching the 2 locks of the pin, and pull out the pin from the clip.
      GTY361542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Pin
      *2 Clip
    2. Using 2 screwdrivers, detach the 2 claws by inserting the screwdrivers into the grooves of the clip as shown in the illustration, and then remove the clip from the vehicle body and disconnect the rear part of the curtain shield airbag assembly LH.

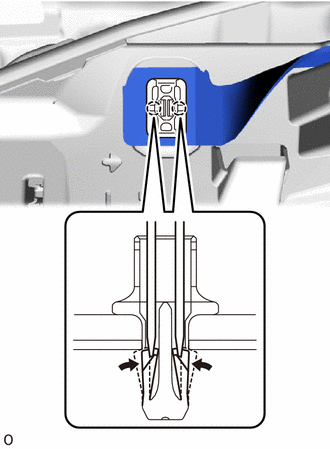

      GTY380794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the wire harness clamp.

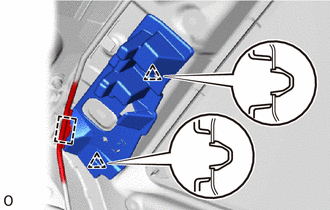

      GTY384368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the 2 clips and remove the rear No. 2 side rail spacer LH.
  47. REMOVE REAR NO. 2 SIDE RAIL SPACER RH

    HINT:

    Use the same procedure described for the LH side.
