Removal [12/2012 - ]: Procedure

  1. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 4 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - ]

  2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 5 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 5 [10/2015 - ]

  3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 9 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 11 [10/2015 - ]

  4. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 15 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 17 [10/2015 - ]

  5. REMOVE FUSE BOX OPENING COVER

    Refer to PROCEDURE - Step 8 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - ]

  6. REMOVE NO. 2 SWITCH HOLE BASE

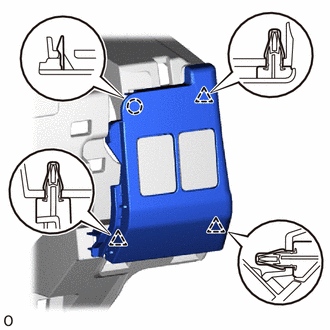

    1. Detach the 3 clips and claw and remove the No. 2 switch hole base.
      GTY380391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BACK DOOR CONTROL SWITCH

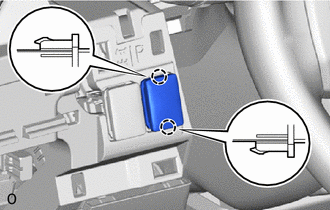

    1. Detach the 2 claws and remove the back door control switch assembly as shown in the illustration.
      GTY369876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

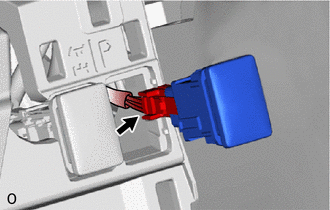

    2. Disconnect the connector.
      GTY382099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
